Terminal Repair Kit J 38125-A

Description:

IMPORTANT: Do not use the terminals in the kit in order to replace damaged SIR system terminals unless specifically indicated by the terminal package.

Tools Required
J 38125-B Terminal Repair Kit

The tool kit J 38125-B contains the following items:

- Special sealed splices - in order to repair the SIR system wiring.
- A wire stripping tool.

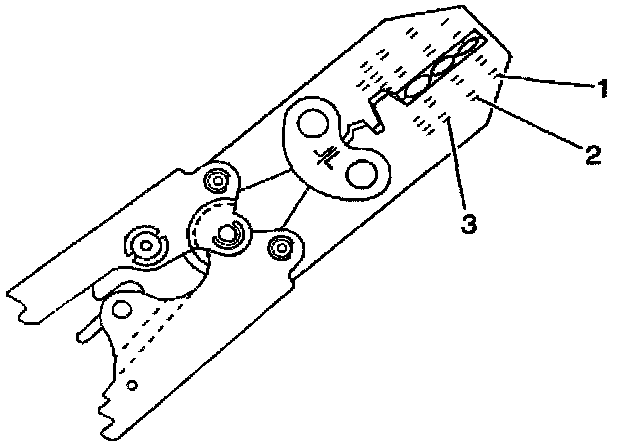

- A special crimping tool.
- A heat torch.
- An instruction manual.

The sealed splices has the following 2 critical features:

- A special heat shrink sleeve environmentally seals the splice. The heat shrink sleeve contains a sealing adhesive inside.
- A cross hatched (knurled) core crimp provides necessary contact integrity for the sensitive, low energy circuits.

The J 38125-B also serves as a generic terminal repair kit. The kit contains the following items:

- A large sampling of common GM electrical terminals.
- The correct tools in order to attach the terminals to wires.
- The correct tools in order to remove the terminals from connectors.
