Clutch: Service and Repair
BLEEDING PROCEDURENOTICE: DO NOT use fluid which has been bled from a hydraulic clutch system, in order to fill the clutch master cylinder reservoir; due to the possibility that the fluid may be aerated, have too much moisture content or be contaminated and may cause system or vehicle damage.
Bleeding the hydraulic clutch system is necessary whenever the level of fluid in the clutch master cylinder reservoir has been allowed to fall so low that air has been drawn into the master cylinder.
1. Clean all dirt and debris from the clutch master cylinder cap to ensure that no foreign substances will enter the system.
2. Remove the clutch master cylinder reservoir cap with diaphragm.
3. Fill the clutch master cylinder reservoir with clutch hydraulic fluid GM P/N 12345347 or equivalent, if necessary.
4. Raise and suitably support the vehicle, Refer to Vehicle Lift Points.
5. Remove the intermediate exhaust pipe. Refer to Intermediate Pipe Replacement in Exhaust System.
6. Remove the driveline tunnel closeout panel. Refer to Driveline Tunnel Closeout Panel Replacement in Propeller Shaft.
7. Have an assistant depress the clutch pedal fully and hold.

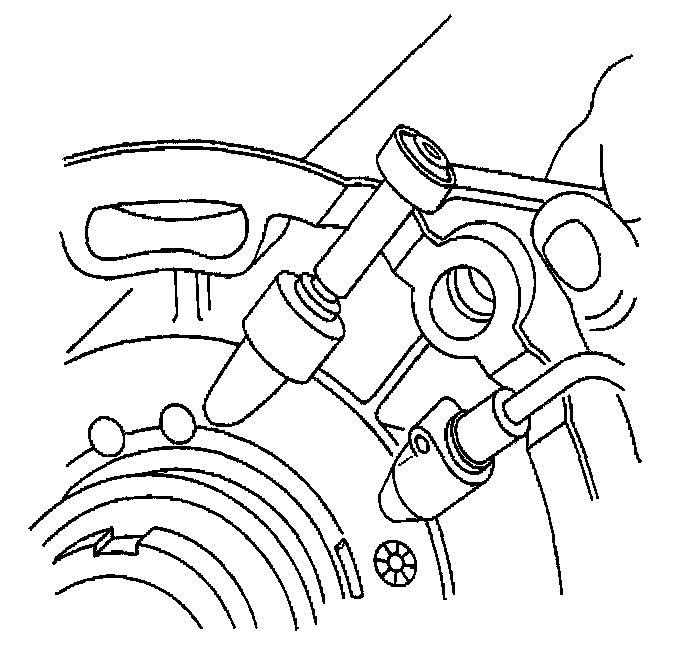

8. Loosen the bleeder screw on the clutch actuator cylinder to purge air.
9. Tighten the bleeder screw.
10. Release the clutch pedal.
11. Repeat steps 7 through 10 until all air is completely evacuated.
Check and refill the clutch master cylinder reservoir with clutch hydraulic fluid GM P/N 12345347 or equivalent, as necessary in order to prevent air from being drawn through the clutch master cylinder.
12. Fill the clutch master cylinder reservoir with clutch hydraulic fluid GM P/N 12345347 or equivalent, if necessary.
13. Install the driveline tunnel closeout panel. Refer to Driveline Tunnel Closeout Panel Replacement in Propeller Shaft.
14. Install the exhaust intermediate pipe. Refer to Intermediate Pipe Replacement in Exhaust System.
15. Lower the vehicle.
