Window Height Adjustment, Major

CAUTION: Disconnect the power window switch when working inside the drivers door. When operated, the Express Down feature allows the door window to drop very quickly, which could cause personal injury.

Window Height Adjustment: Door Major:

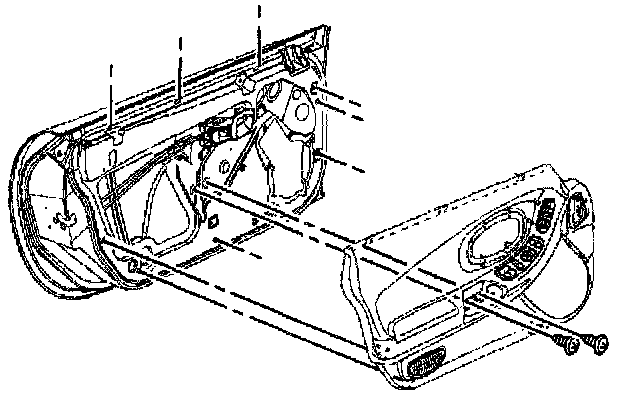

1. Remove the door trim panel.

Window Height Adjustment: Door Major:

2. Reconnect the window switch to the harness.
3. Raise the door window.

Window Height Adjustment: Door Major:

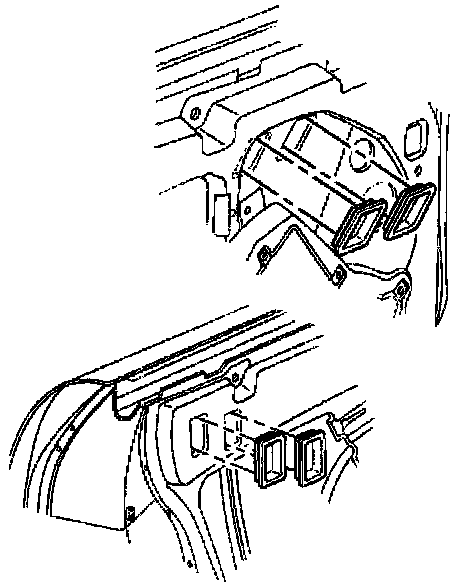

4. Remove the window clamp sight access plugs.

Window Height Adjustment: Door Major:

5. Loosen the window clamps.
6. Close the door.
7. With the aid of an assistant standing outside of the vehicle, position the window to the door opening.
8. From the inside of the vehicle tighten the window clamps.

Window Height Adjustment: Door Major:

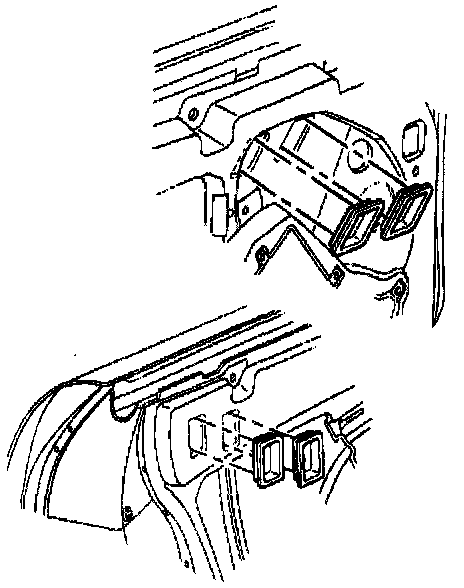

9. Open the door and install the window clamp sight access plugs.

Window Height Adjustment: Door Major:

10. Install the door trim panel.
11. Perform minor height and minor tip-in adjustments as necessary.
