Wiper/Washer Switch Replacement

REMOVAL PROCEDURE

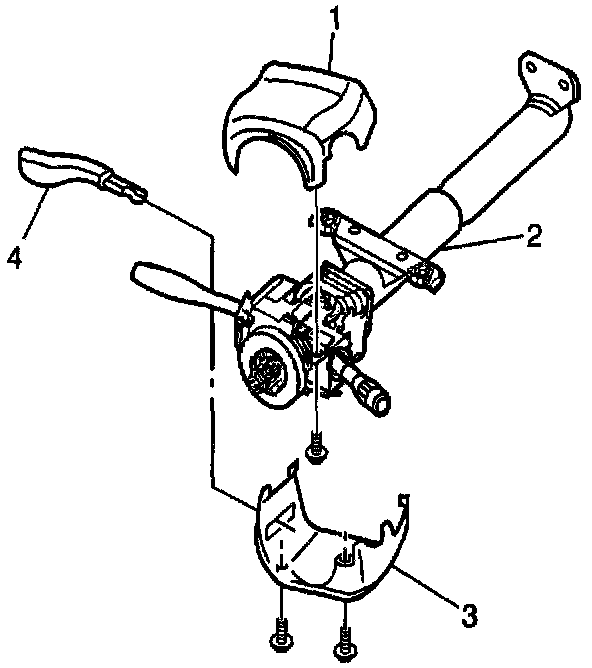

Wiper/Washer Switch Replacement: Removal Procedure:

1. Remove the tilt wheel lever (4).
2. Remove the driver knee bolster trim panel.
3. Separate and remove the upper (1) and lower (3) steering column covers.

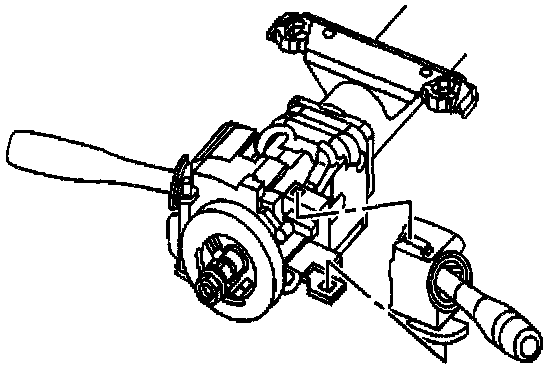

Wiper/Washer Switch Replacement: Removal Procedure:

4. Disconnect the electrical connector from the wiring harness.
5. Release the upper and lower retaining clips and slide the wiper/washer switch from the steering column lock module.

INSTALLATION PROCEDURE

Wiper/Washer Switch Replacement: Installation Procedure:

1. Slide the wiper/washer switch into the steering column lock module until the upper and lower retaining clips snap into place.
2. Connect the electrical connector into the wiring harness.

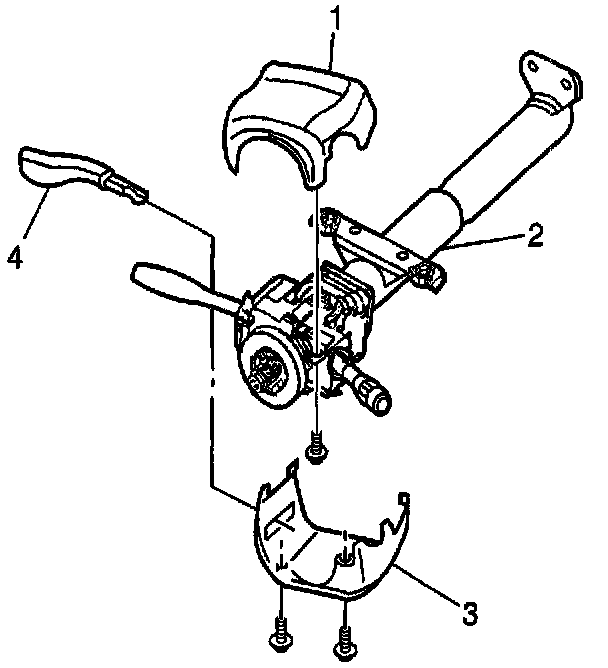

Wiper/Washer Switch Replacement: Installation Procedure:

3. Install the upper (1) and lower (3) steering column covers.
4. Install the tilt wheel lever (4).
5. Install the driver knee bolster trim panel.
