Home >> Chevrolet >> 1998 >> Lumina V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Lamp >> C2

C2

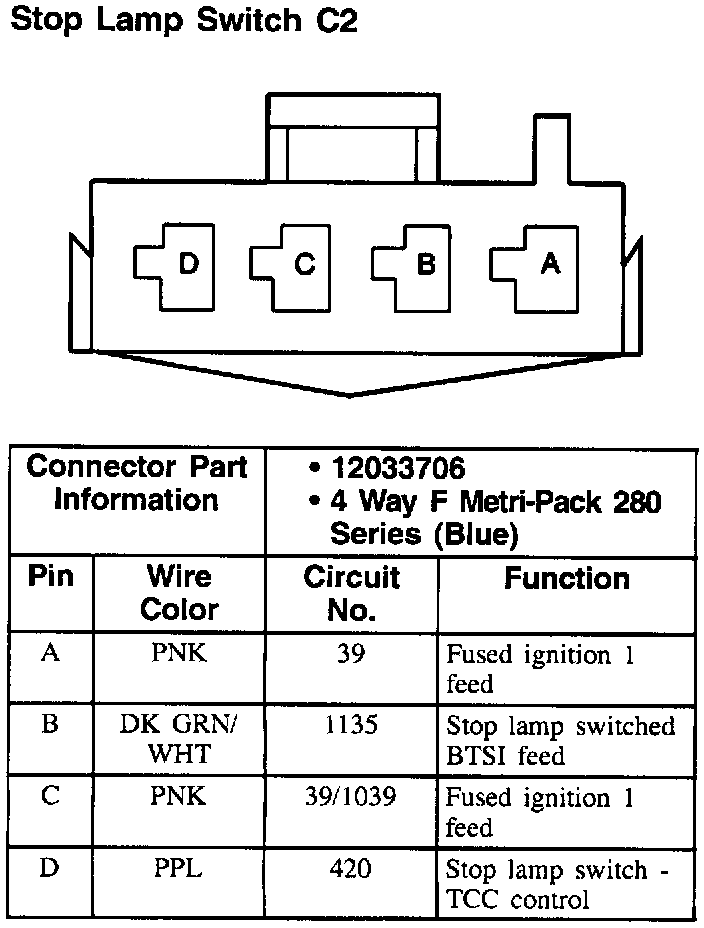

Stop Lamp Switch: C2:
