Air Cleaner Housing: Service and Repair

REMOVAL PROCEDURE






1. Loosen the air cleaner outlet duct clamps.

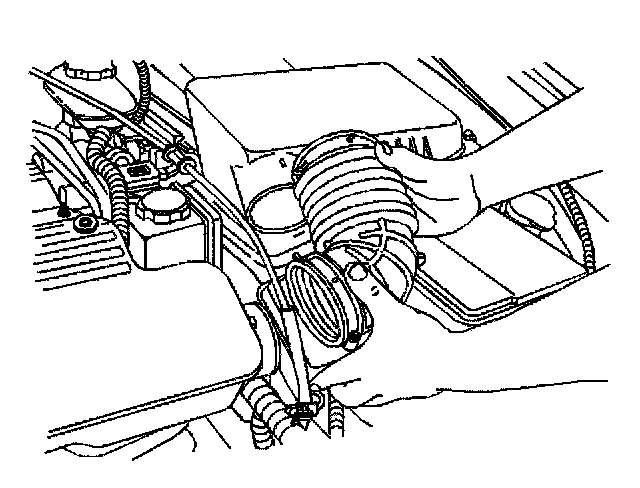

2. Remove the air cleaner outlet duct from the air cleaner assembly.

3. Disconnect the battery cables and remove the battery.

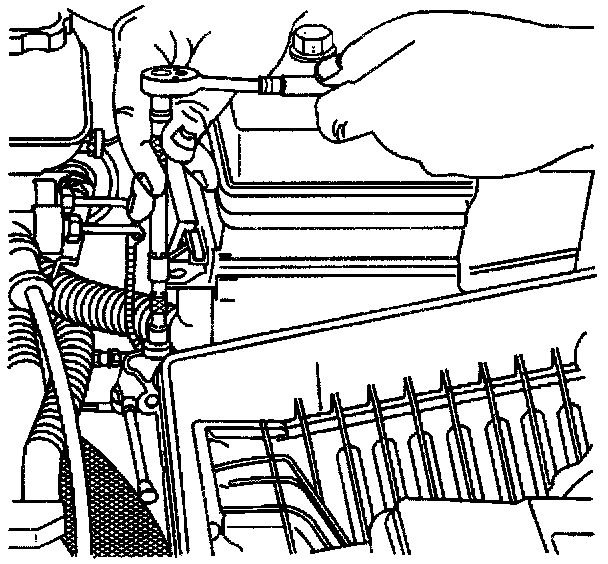

Lower Air Cleaner Mounting Bolts:

4. Remove the lower air cleaner mounting nuts.

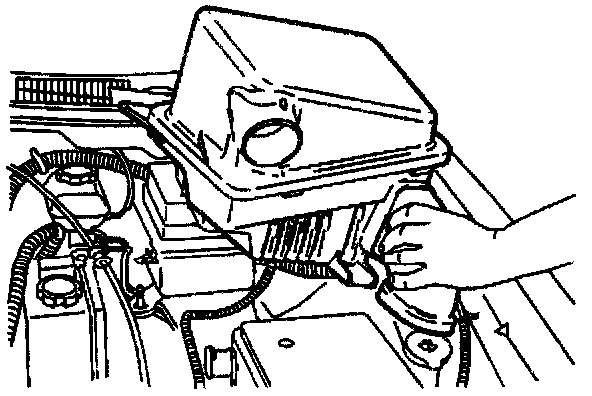

Upper And Lower Air Cleaner Assembly:

5. Remove the upper and lower air cleaner assembly.


INSTALLATION PROCEDURE

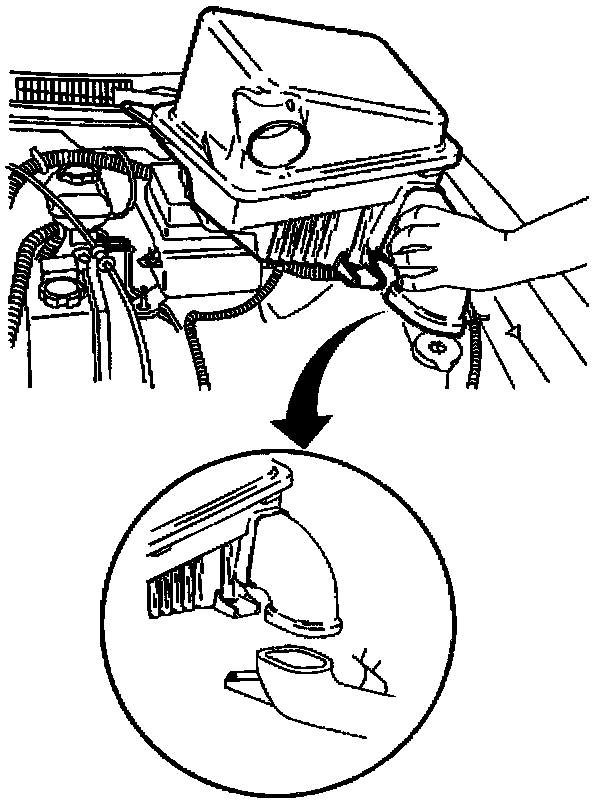

IMPORTANT: Verify full engagement of the intake duct and resonator assembly into the air cleaner assembly.






1. Install and align the upper and lower air cleaner assembly to the intake duct and the resonator assembly.

Lower Air Cleaner Mounting Bolts:

2. Install the lower air cleaner mounting nuts.

^ Tighten Lower air cleaner mounting nuts to 10 N.m (89 lb. in).

3. Install the battery and connect the battery cable.






4. Install the air cleaner outlet duct to the air cleaner assembly.






5. Tighten the air cleaner outlet duct clamps.

^ Tighten Air cleaner outlet duct clamps to 5 N.m (44 lb. in).
