Fuse Block
>>
Underhood Wiring Harness Junction Block
Underhood Wiring Harness Junction Block

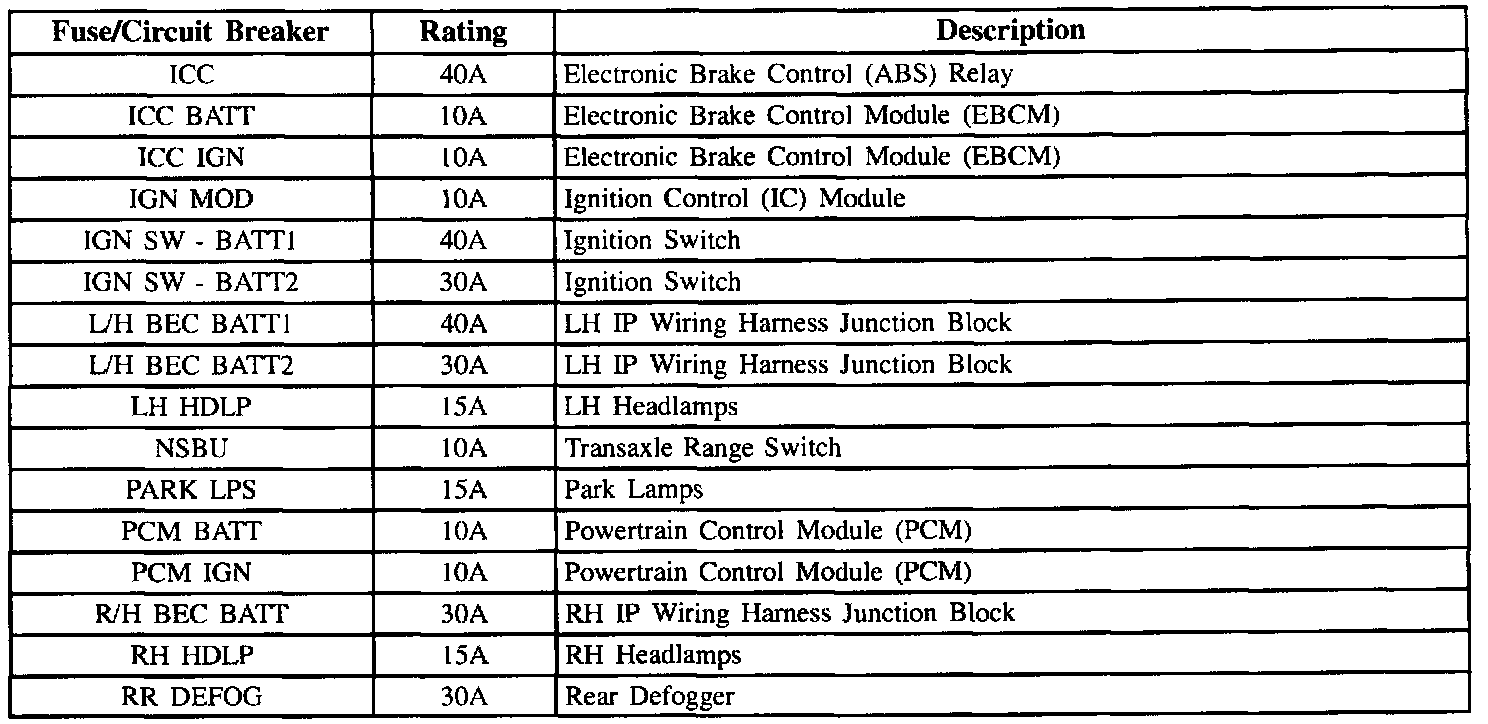

Underhood Wiring Harness Junction Block (Part 1 Of 2):

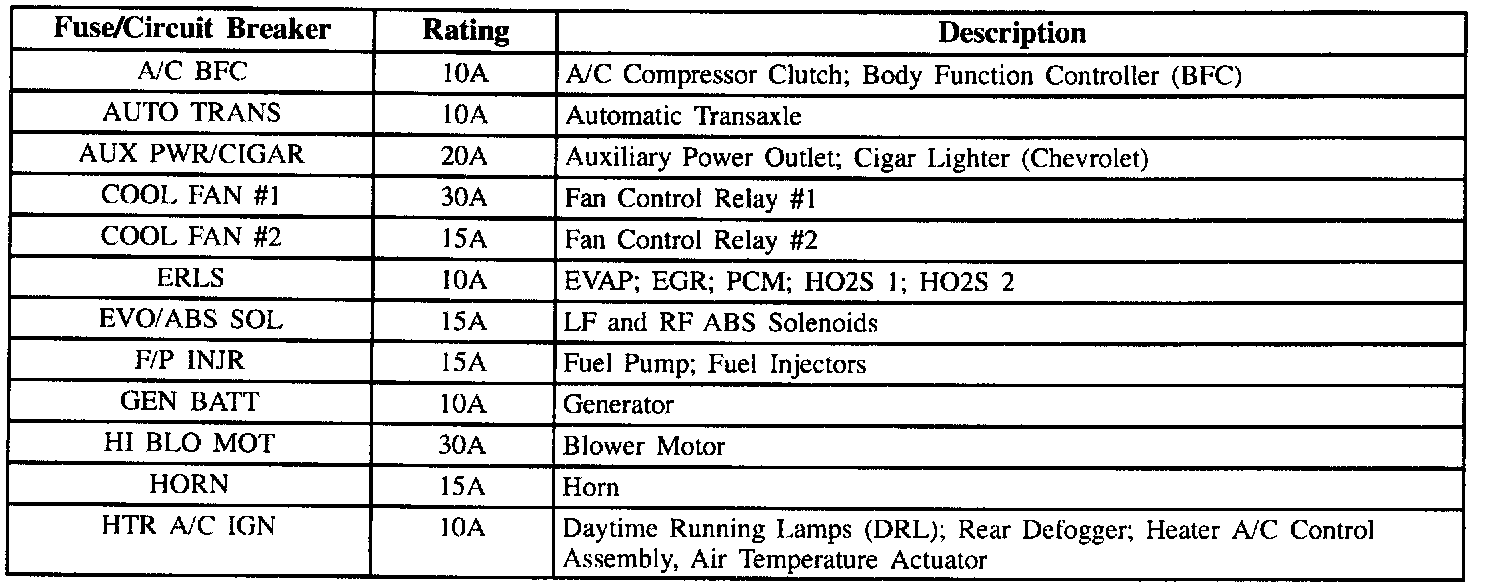

Underhood Wiring Harness Junction Block (Part 2 Of 2):
