Cylinder Head Installation (Left and Right)

^ Tools Required
- J 36660 Torque Angle Meter

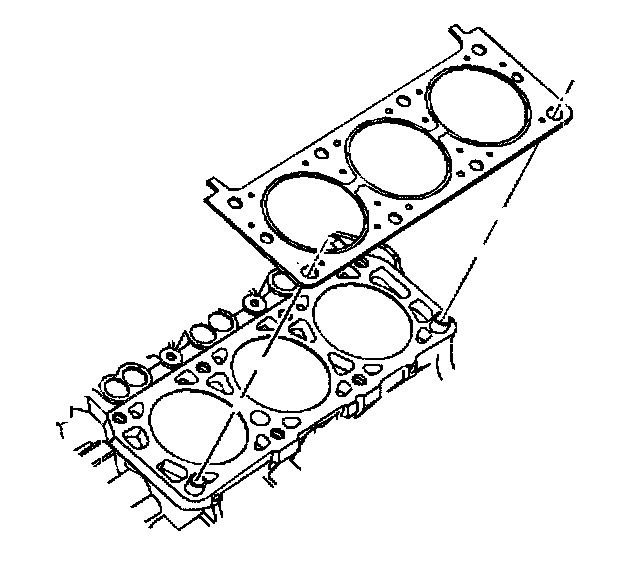

1. Install the cylinder head gasket.





2. Install the cylinder head.





3. Install the cylinder head bolts.
^ Tighten the cylinder head bolts in sequence to 50 Nm (37 ft. lbs.). Turn the bolts an additional 90° using J 3666A.

NOTICE: Refer to Fastener Notice in Service Precautions.
