Instrument Panel Center Compartment Replacement

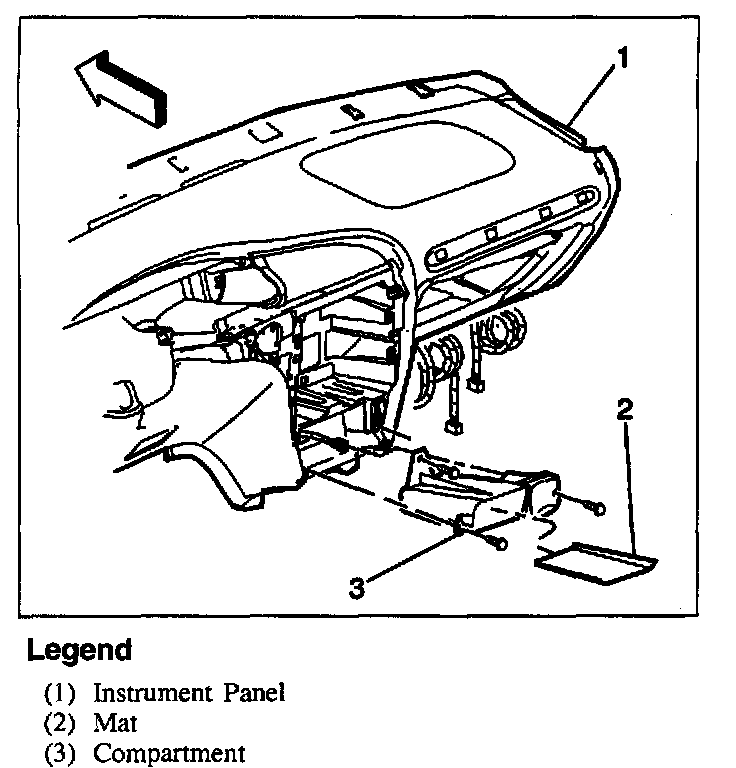

Instrument Panel Center Compartment - Chevrolet (W/O UN8):

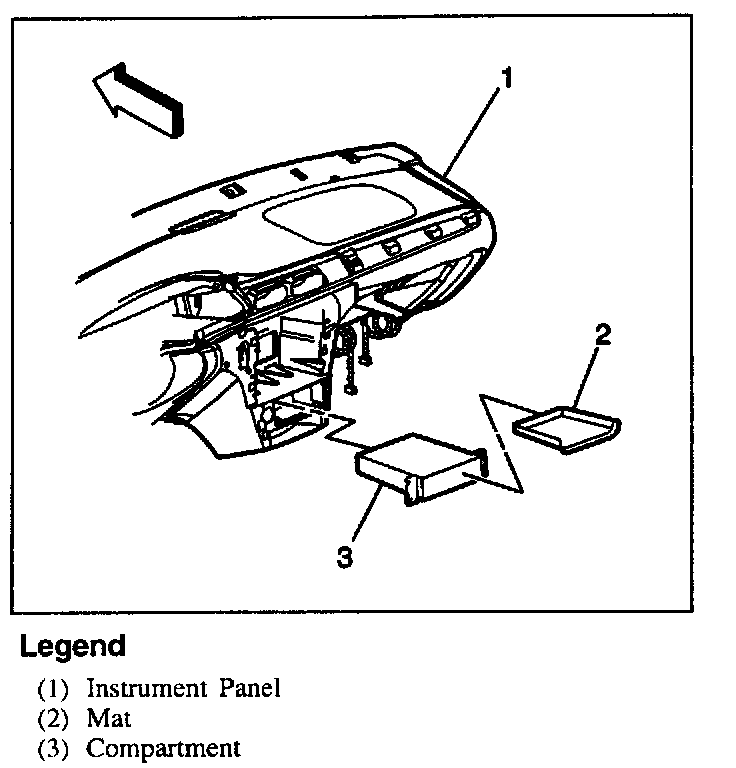

Instrument Panel Center Compartment - Oldsmobile:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Disable SIR system.
3. Accessory trim plate. Refer to Accessory Trim Plate. Service and Repair
4. Unsnap center compartment from instrument panel.

INSTALL OR CONNECT
1. Snap center compartment to instrument panel.
2. Accessory trim plate.
3. Enable SIR system.
4. Negative battery cable.
