Fog Lamp Aiming

Fog Lamp Visual Aiming:

1. Prepare vehicle. Refer to Headlight Aiming. Service and Repair
2. Turn vertical adjustment screw until pattern aligns on screen.

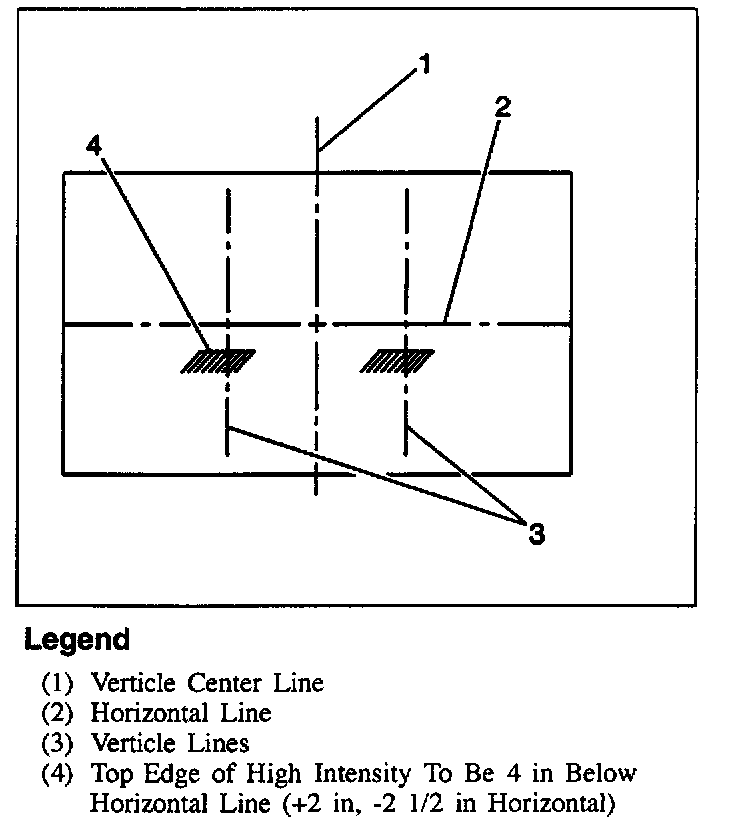

3. The top edge of the high intensity zone shall be 100 mm (4 inch) below the horizontal centerline of the lamps and the center of the high intensity zone shall be on the vertical centerline of the lamps when projected on a screen 7.6 m (25 feet) away.
