Marker Lamp: Service and Repair

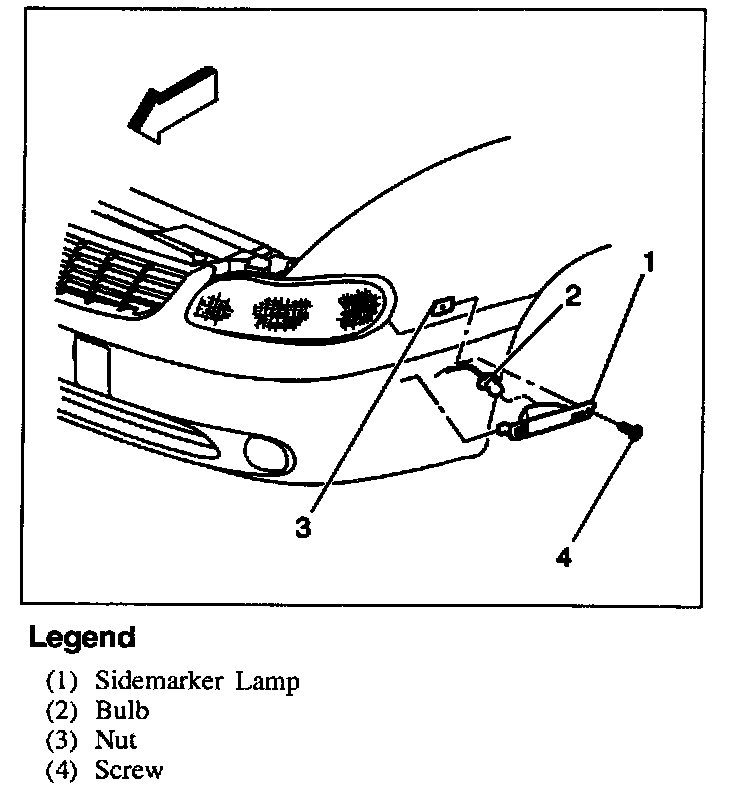

Front sidemarker Lamp:

REMOVE OR DISCONNECT
1. Screw from sidemarker lamp.
2. Sidemarker lamp from front fascia.
3. Socket from lamp assembly.

INSTALL OR CONNECT
1. Socket to lamp assembly.
2. Sidemarker lamp to front fascia.
3. Screw to sidemarker lamp assembly.
