Home >> Chevrolet >> 1998 >> Metro L4-079 1.3L VIN 2 MFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Locations >> Metal Case (on the end of the Coax)

Metal Case (on the end of the Coax)

Antenna System:

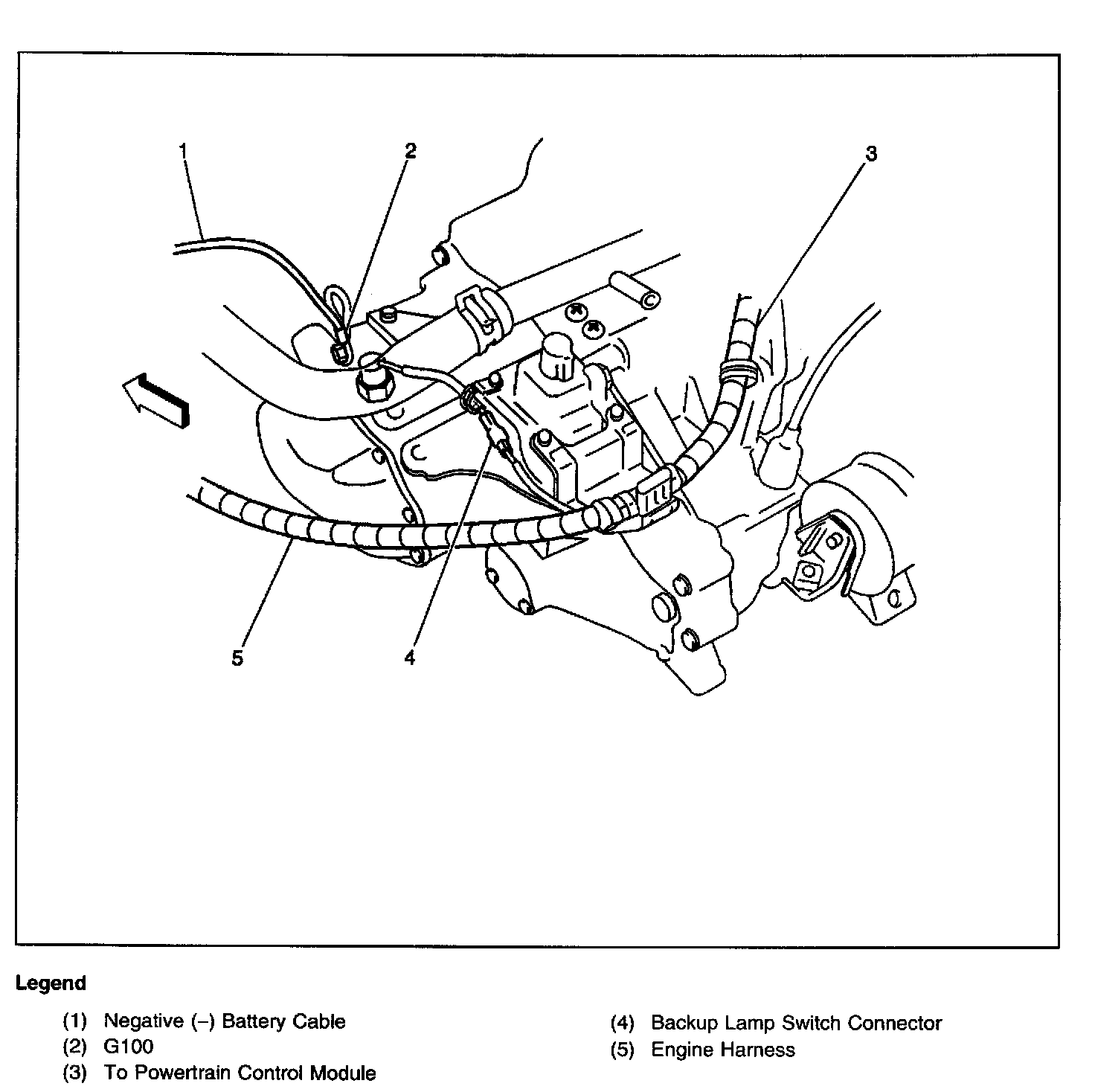

Engine Wiring Manual Transaxle:
