Floor Harness

Cowl Wiring:

LH Front Passenger Compartment Wiring: 4-Door:

LH Rear Passenger Compartment Wiring: 4-Door:

LH Rear Passenger Compartment Wiring: 2-Door:

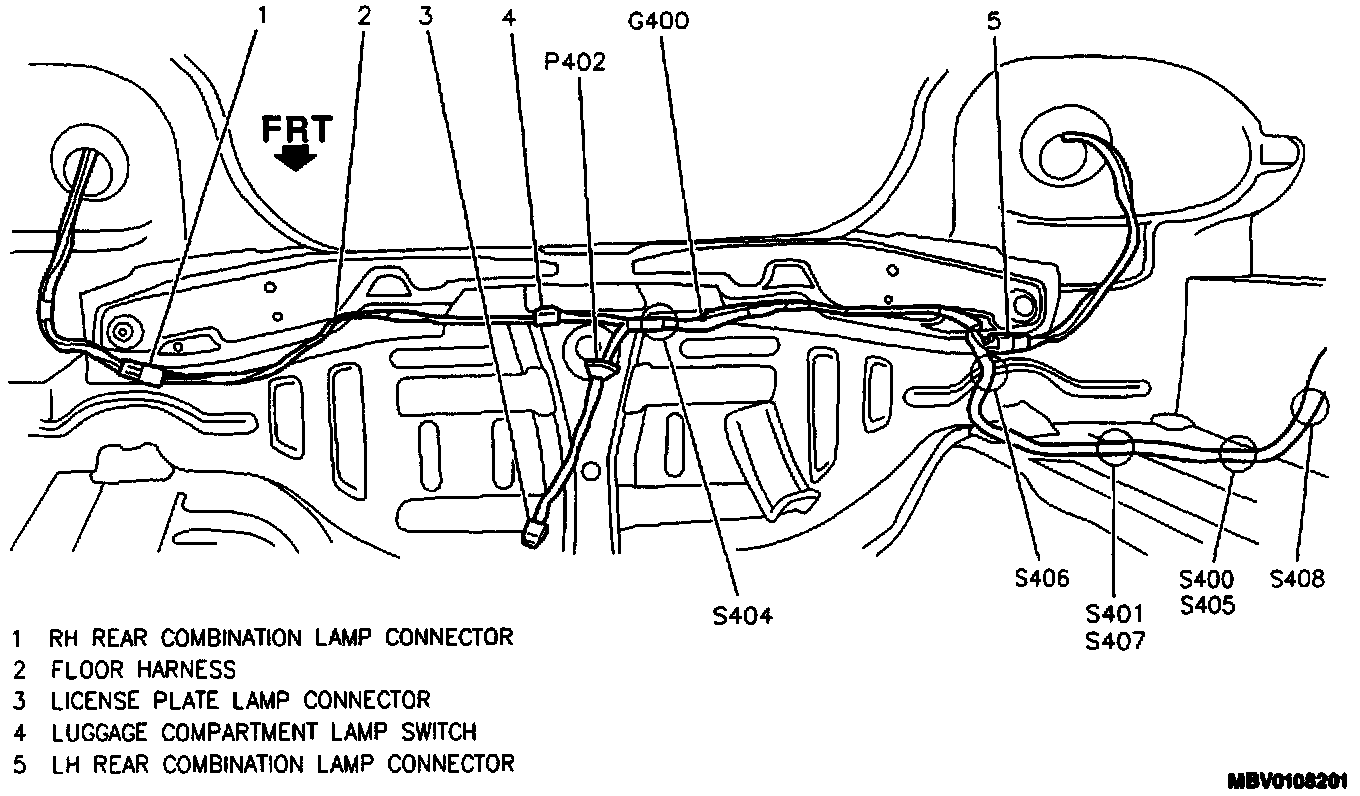

Rear Luggage Compartment: 2-Door:

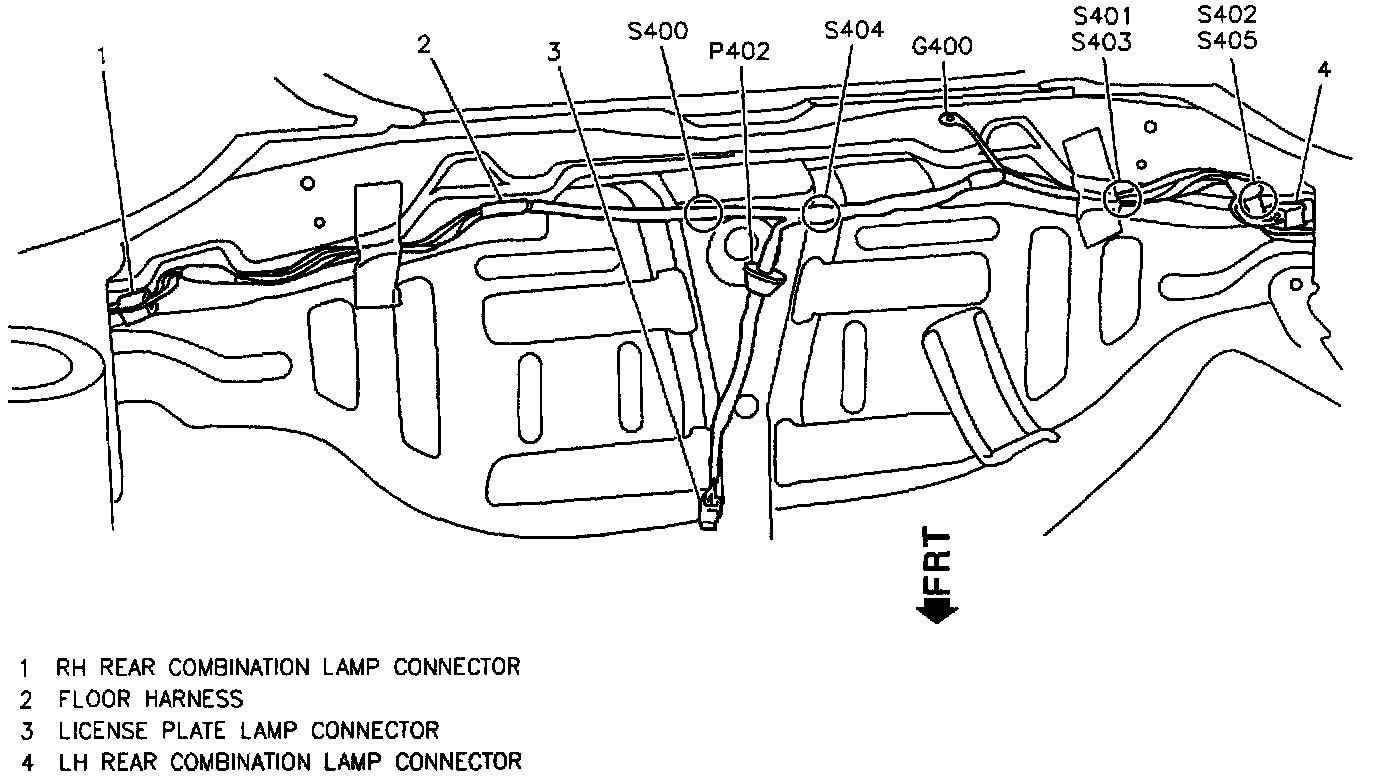

Rear Luggage Compartment: 4-Door:
