Powertrain Control Module (PCM), C1, C2 & C3

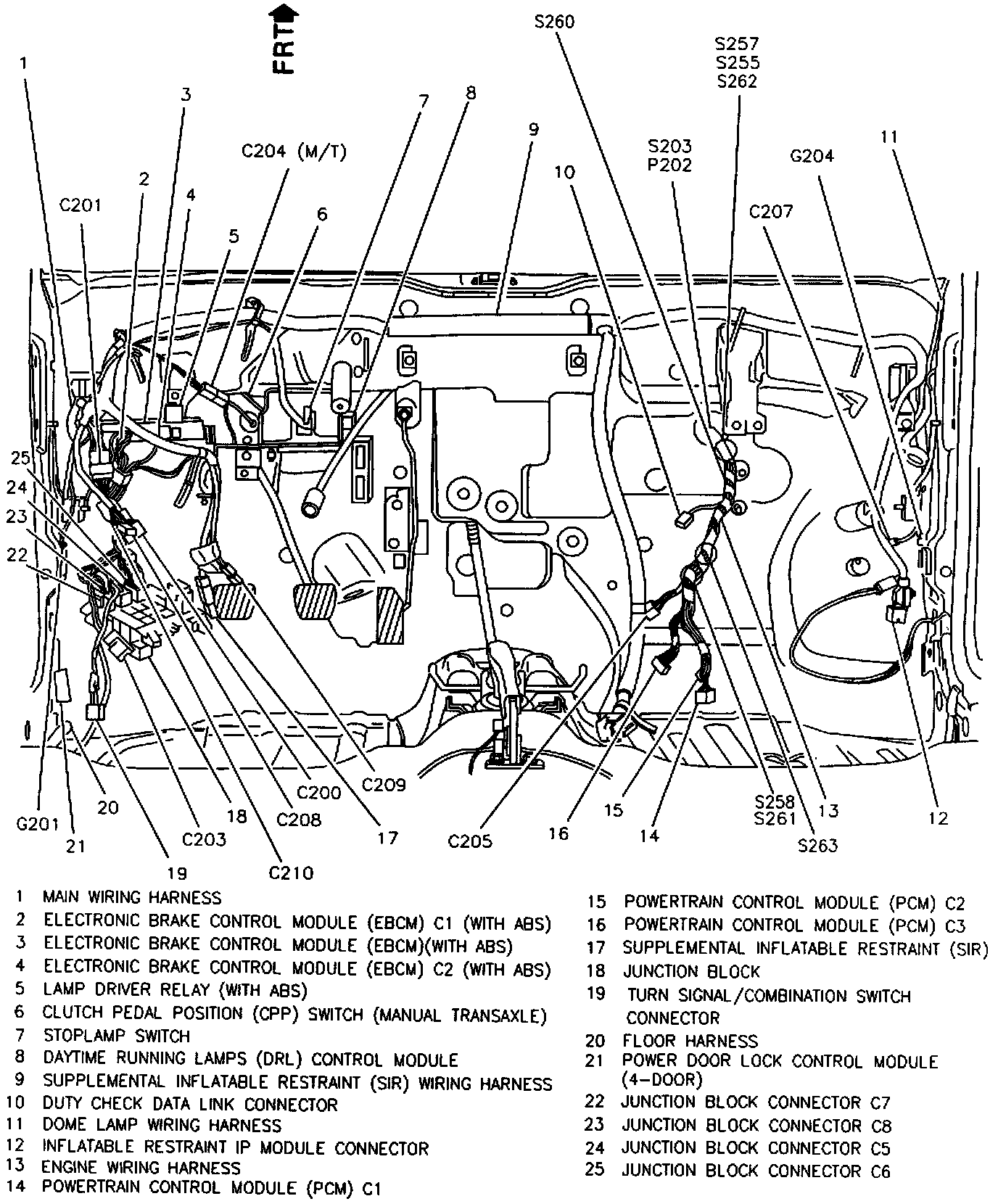

Cowl Wiring:



LH Front Passenger Compartment Wiring: 4-Door:
