Backup Lamp
>>
System Diagram
System Diagram

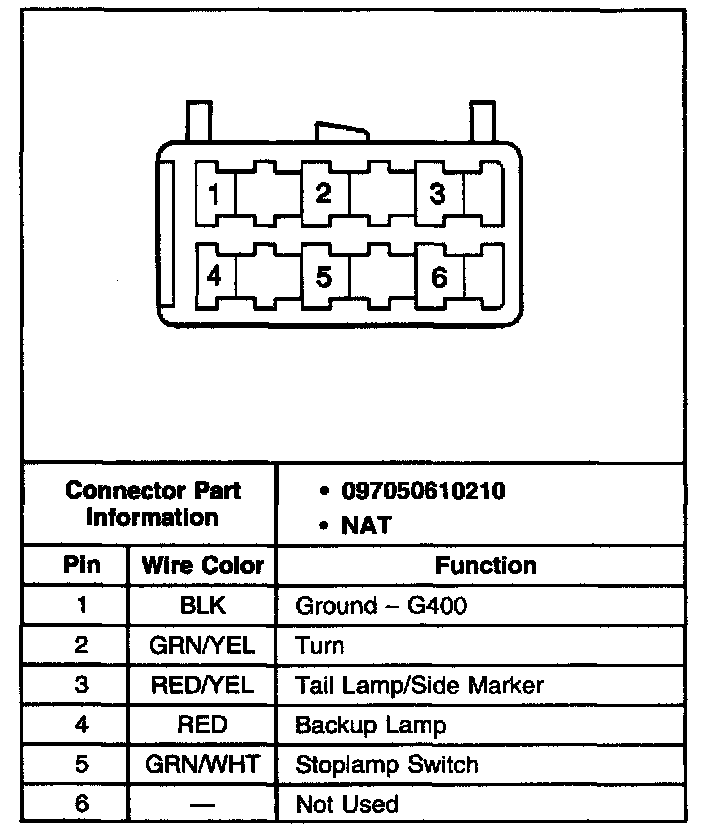

Combination Lamp:

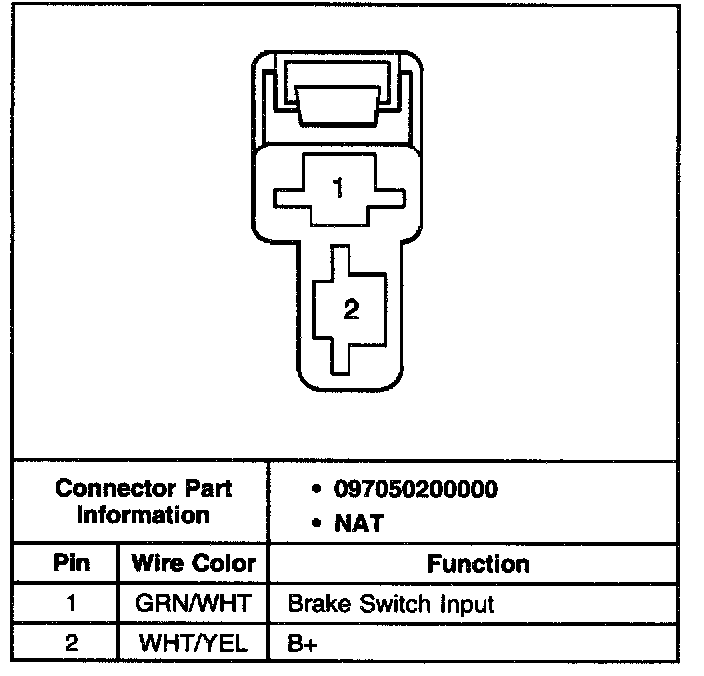

Stoplamp Switch (Manual Transaxle):
Stoplamp Switch:
