Home
>>
Chevrolet
>>
1998
>>
Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster C3
Instrument Cluster C3

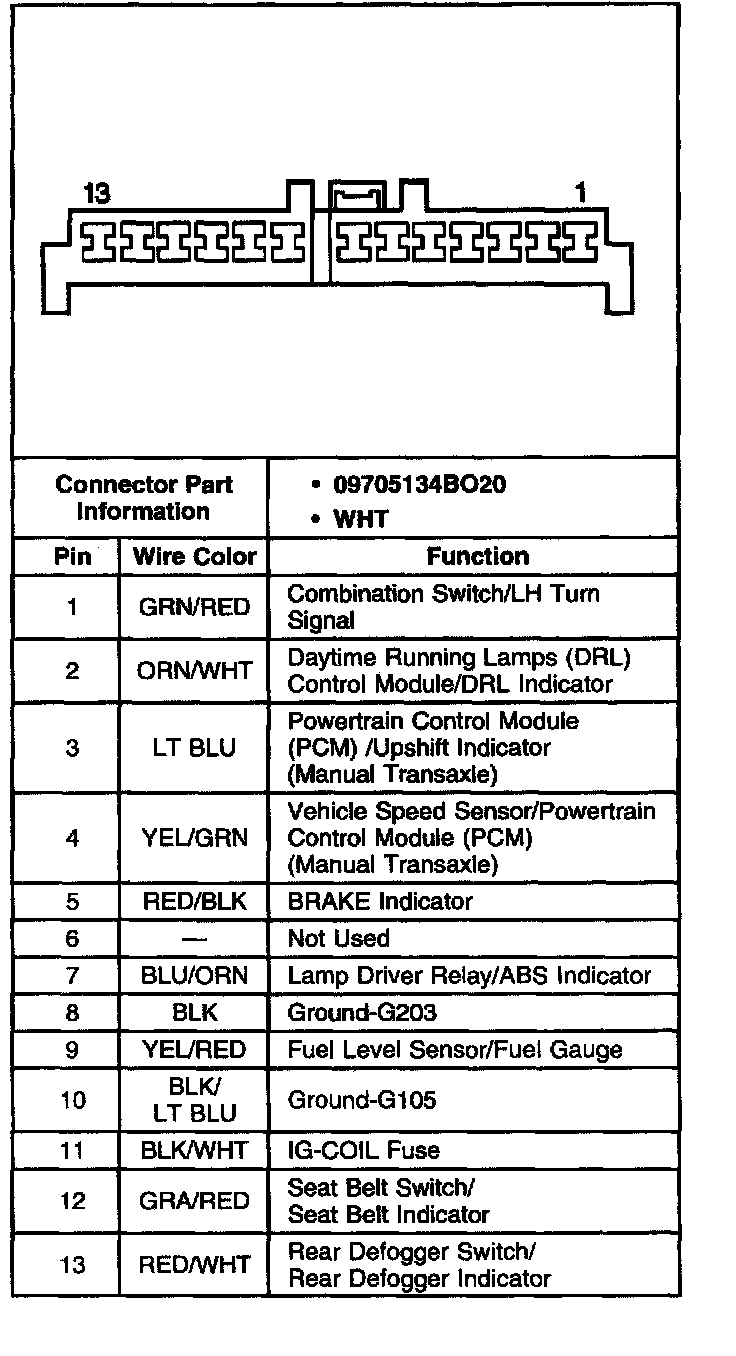

Instrument Panel Cluster Connector: C3:
