Diagnostic Charts

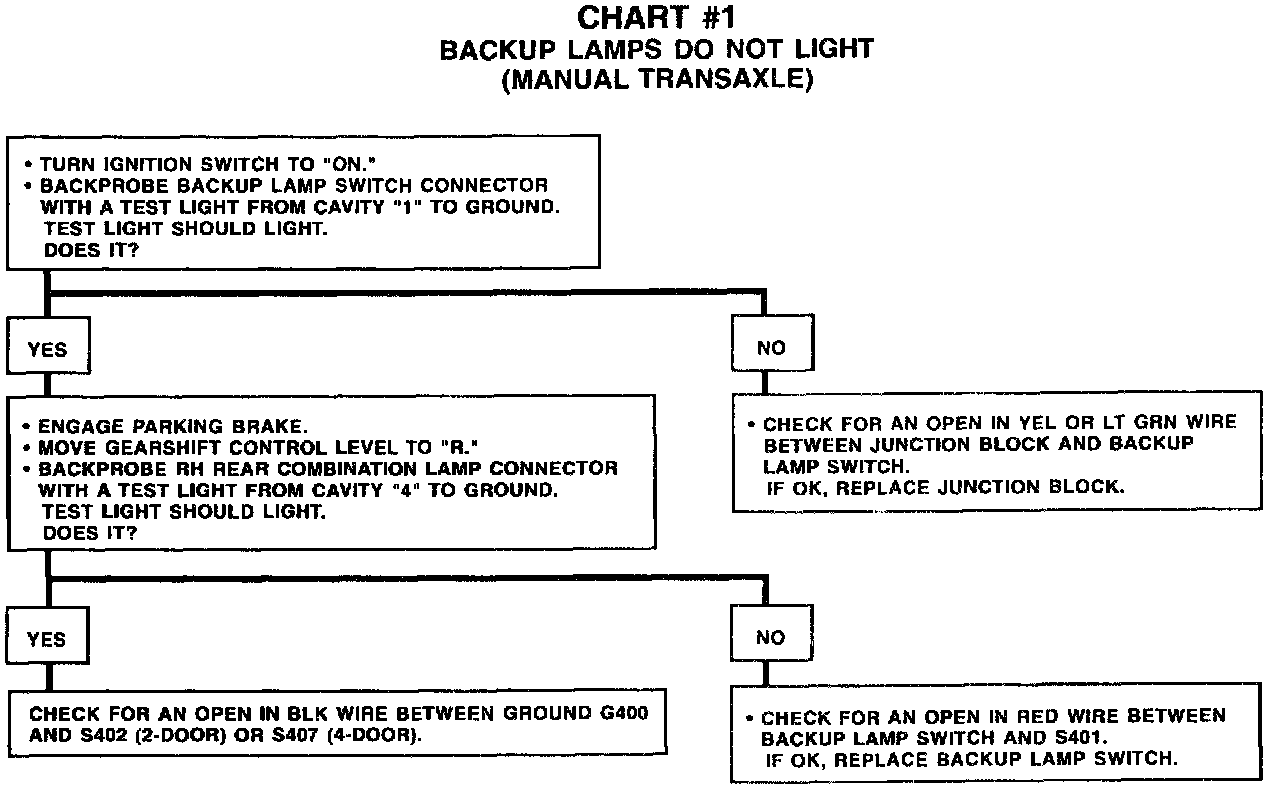

Chart #1 Backup Lamps Do Not Light (Manual Transaxle):

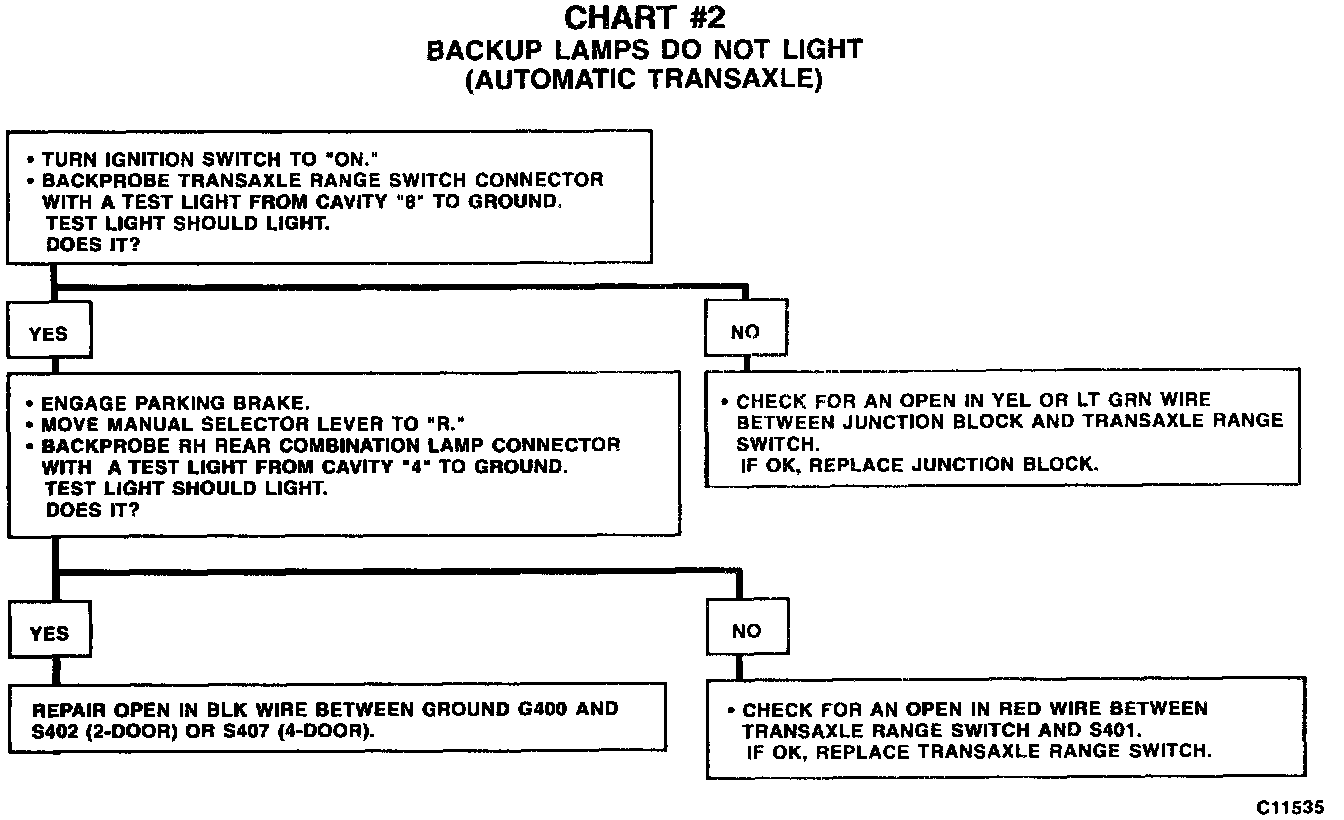

Chart #2 Backup Lamps Do Not Light (Automatic Transaxle):
