Home >> Chevrolet >> 1998 >> Metro L4-079 1.3L VIN 2 MFI >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Wiring Diagrams (Updated Second Edtion Diagrams) >> Exterior Lights Schematics >> Park/Turn Lamp, License Plate Lamp

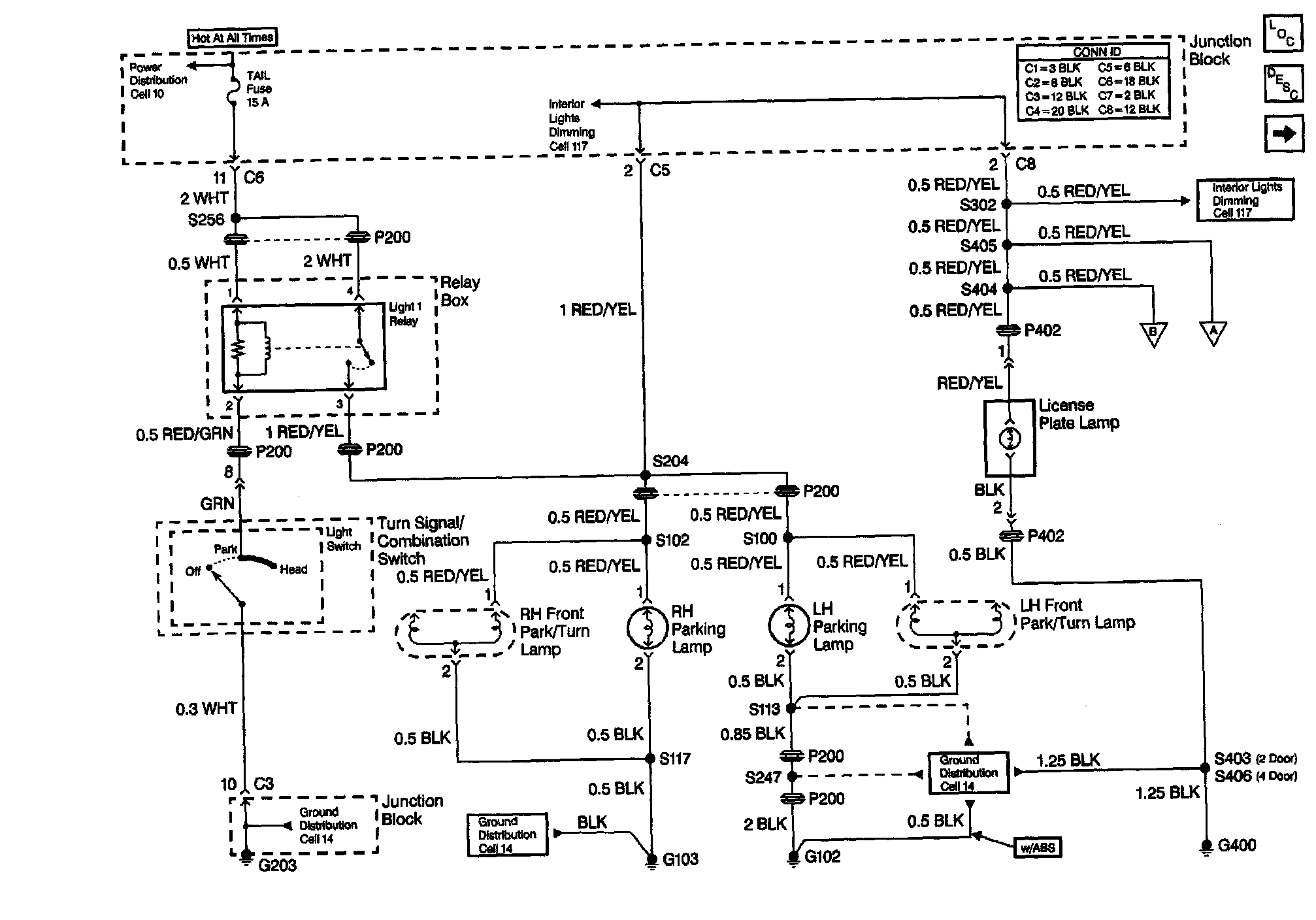

Park/Turn Lamp, License Plate Lamp

Exterior Lights Schematics: Park/Turn Lamp, License Plate Lamp:
