Dome Lamp Replacement (2-Door)

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

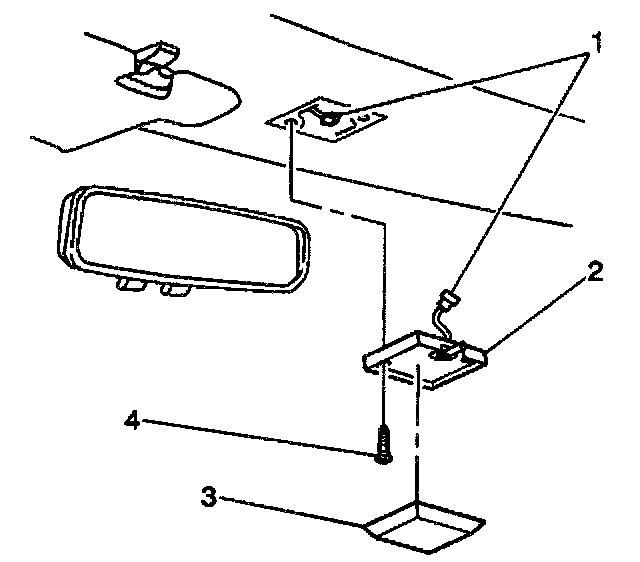

2. Using a flat-bladed tool, gently pry oft the dome lamp lens (3).
3. Remove the 2 dome lamp assembly mounting screws (4).
4. Lower the dome lamp assembly (2).
5. Disconnect the dome lamp electrical connector (1).
6. Remove the dome lamp assembly (2) From the vehicle.

INSTALLATION PROCEDURE
1. Connect the dome lamp assembly electrical connector (1).
2. Install the dome lamp assembly (2) to the vehicle. Secure the lamp assembly with the 2 screws (4).
3. Snap the dome lamp lens (3) into the dome lamp assembly.
4. Connect the negative battery cable.
