Tail Lamp Replacement (2 Door)




REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

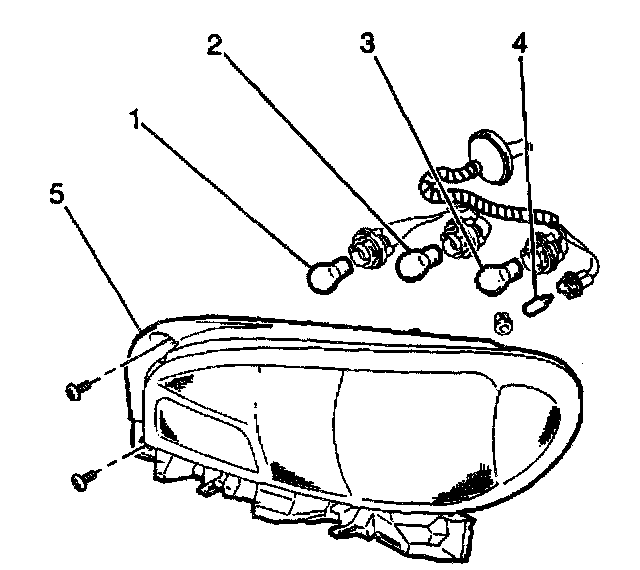

2. Remove the 2 screws which secure the tail lamp (5).
3. Pull the tail lamp (5) away From the rear end panel in order to gain access to the bulb sockets.
4. Remove the bulb sockets From the tail lamp (5).
5. Remove the tail lamp (5) From the vehicle.

INSTALLATION PROCEDURE
1. Install the bulb sockets to the tail lamp (5).
2. Install the tail lamp (5) to the rear end panel. Secure the lamp with the 2 screws.
3. Connect the negative battery cable.
