Hazard Fuse, H/L, L Fuse, R Fuse & Door Lock Fuse
Hazard Fuse, H/L, L Fuse, R Fuse & Door Lock Fuse

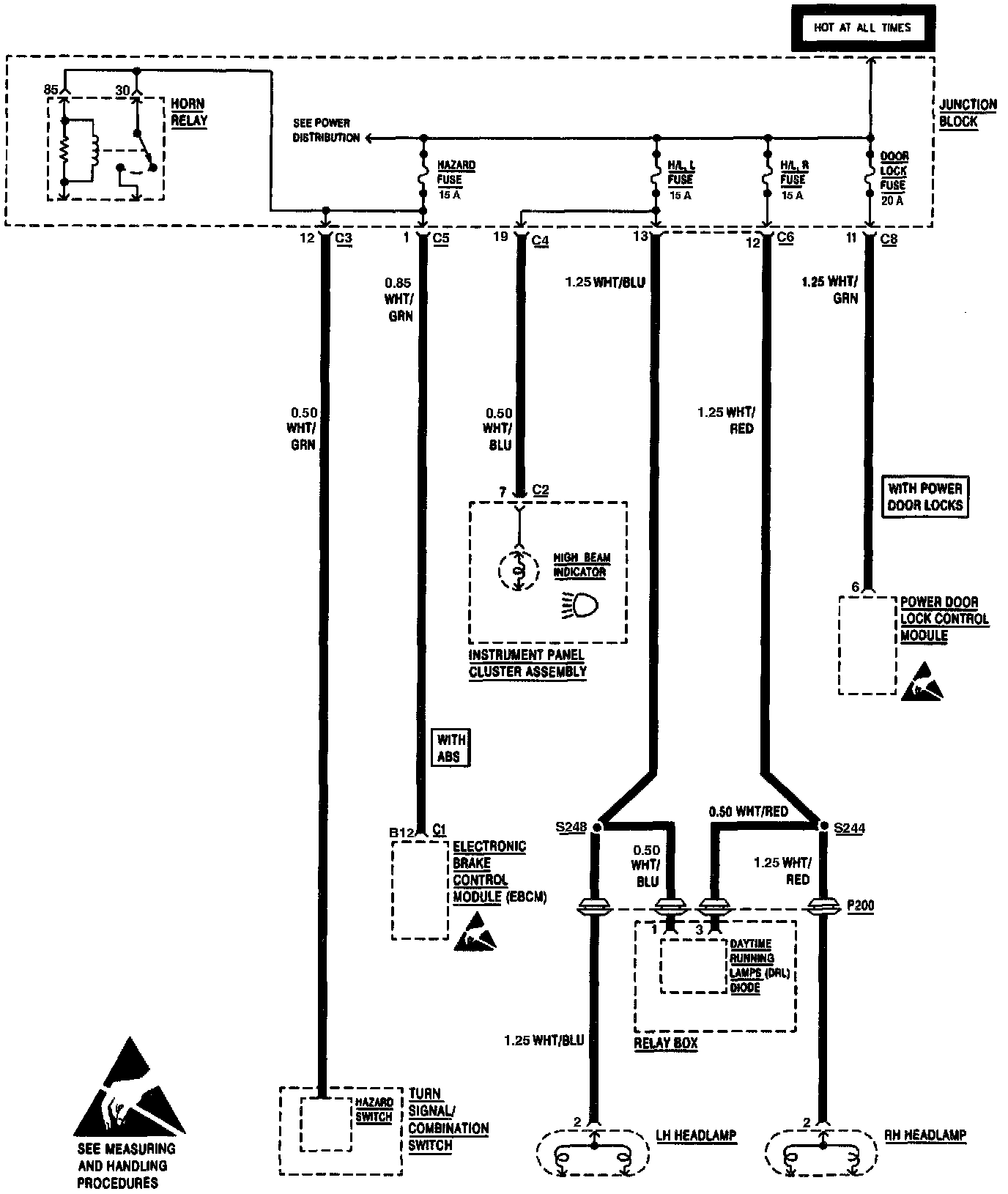

Hazard Fuse, H/L, L Fuse, R Fuse & Door Lock Fuse:
