Home >> Chevrolet >> 1998 >> Metro L4-079 1.3L VIN 2 MFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Dome Fuse and Stop Fuse

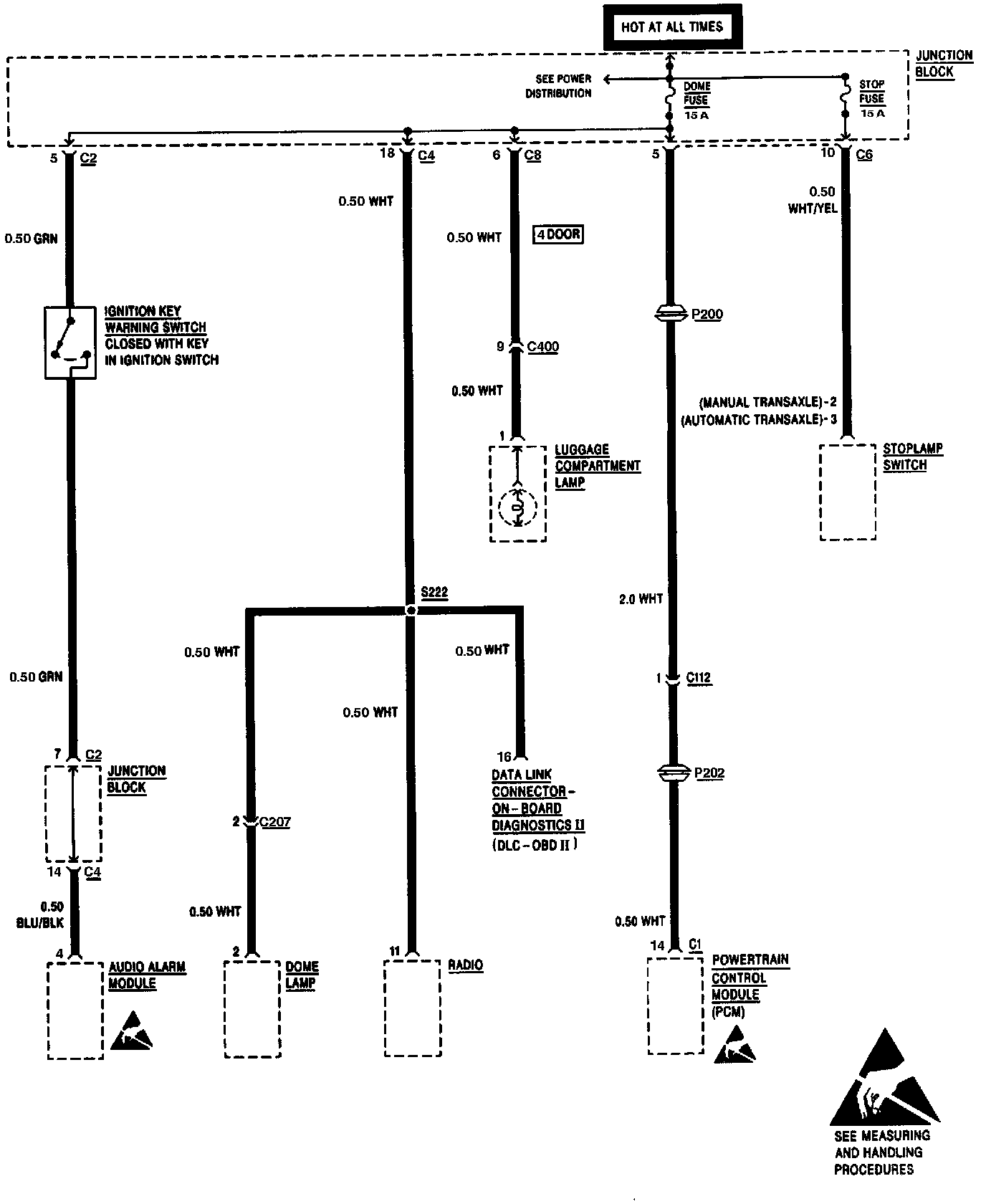

Dome Fuse and Stop Fuse

Dome Fuse & Stop Fuse:
