Antenna Extension Cables

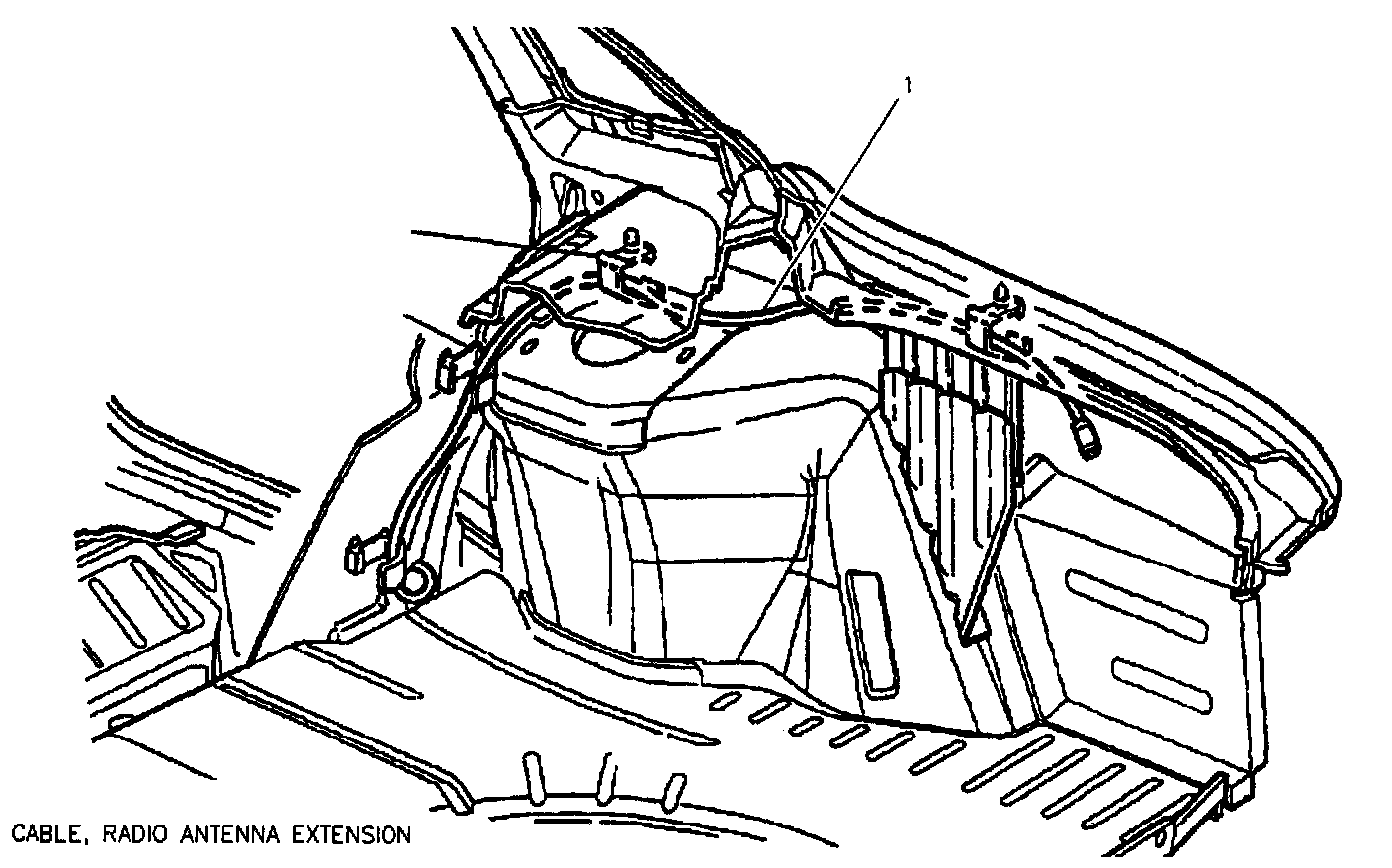

Front Antenna Extension Cable:

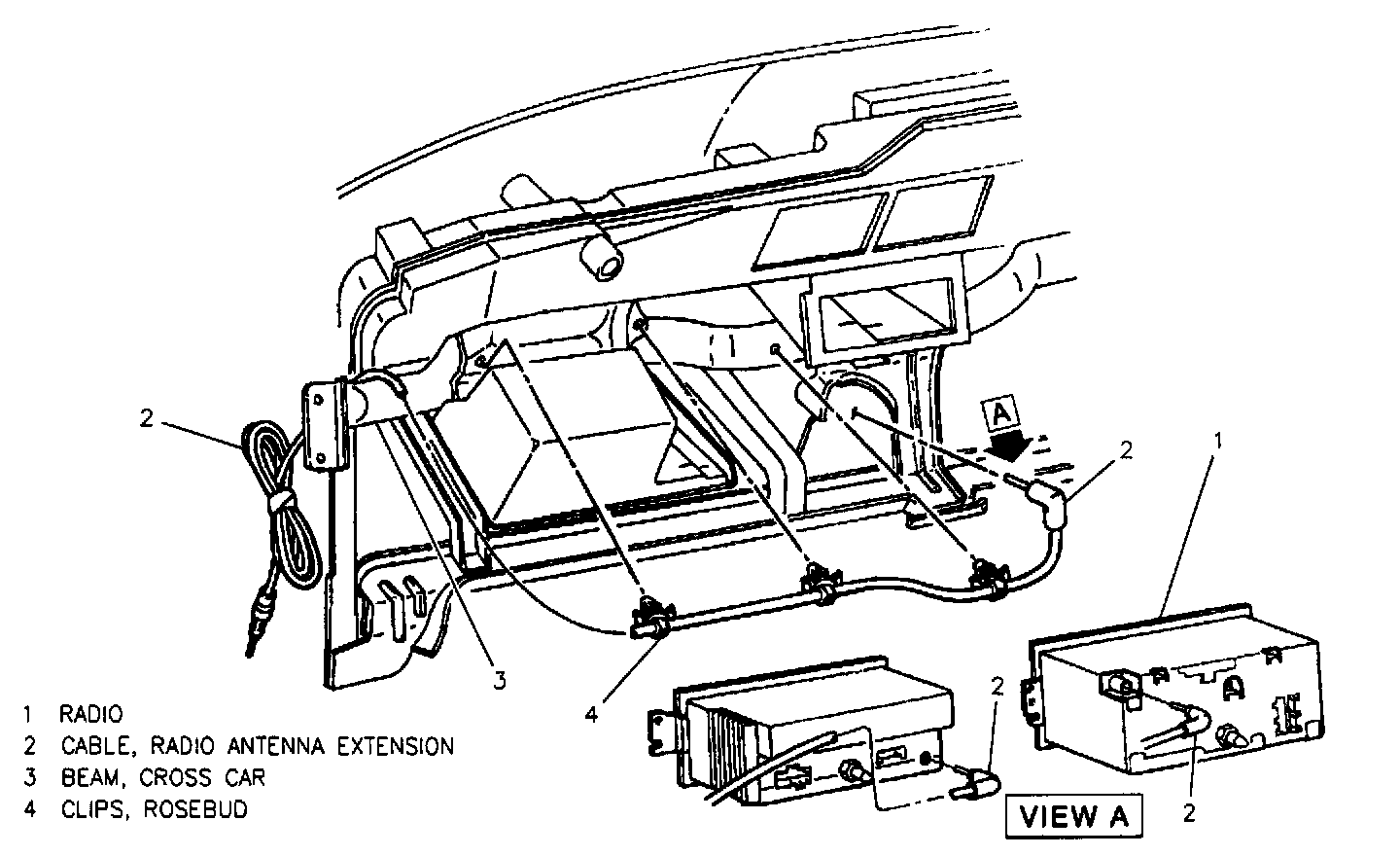

Front Antenna Extension Cable (1 Of 2):

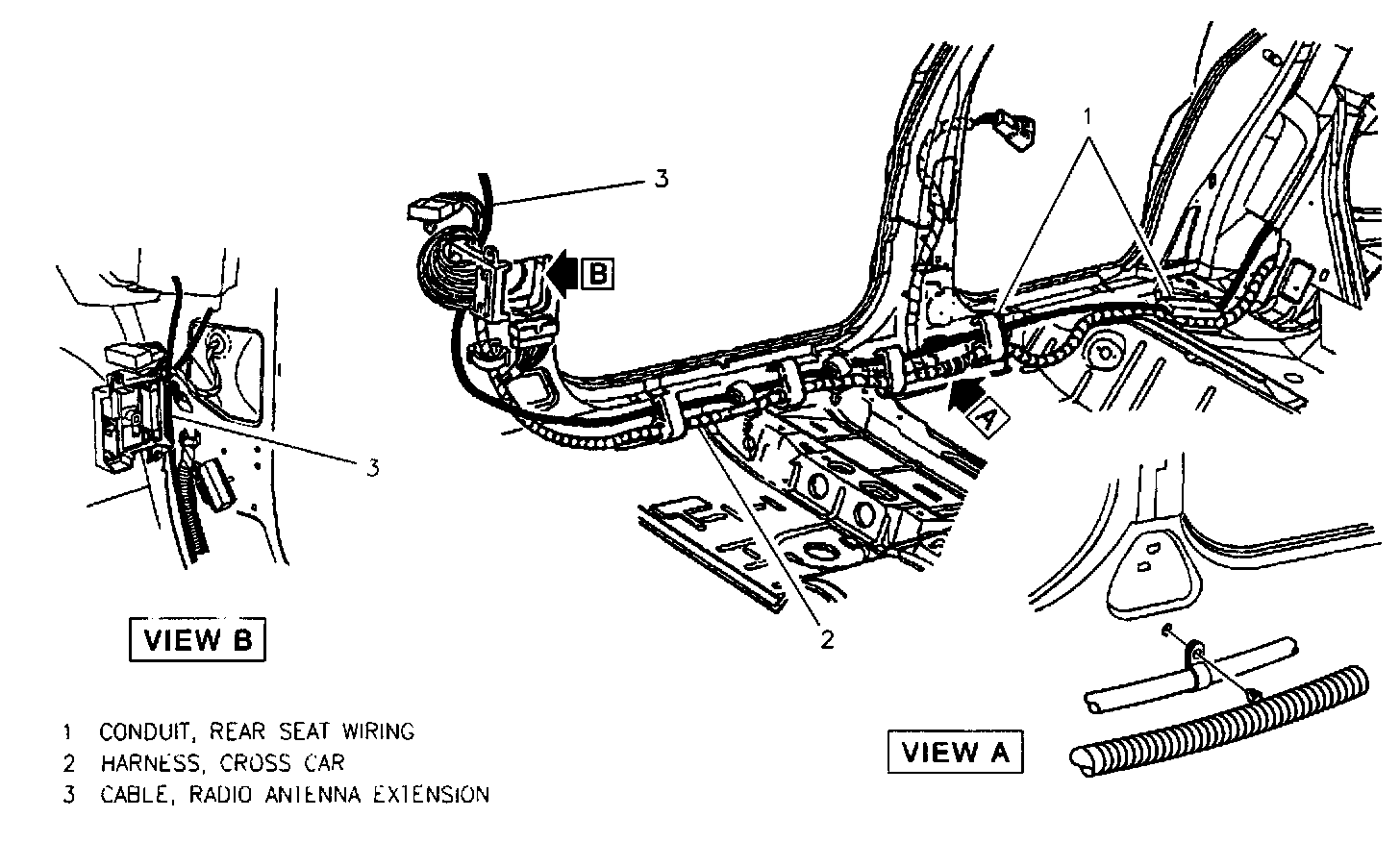

Front Antenna Extension Cable (2 Of 2):

There are two antenna extension cables used in the antenna system. The following are procedures to service the front and rear cables.

REMOVE OR DISCONNECT
1. Radio.
2. Right lower instrument panel insulator.
3. Antenna extension cable rosebud retainers from the instrument panel.
4. Right side carpet retainer.
5. Pull back the carpet to gain access to the antenna extension cable.
6. Rear seat cushion.
7. Right side rear compartment trim.
8. Antenna extension cable from antenna.
9. Antenna extension cable from conduit.

INSTALL OR CONNECT
1. Antenna extension cable to antenna.
2. Antenna extension cable to conduit.
3. Right side rear compartment trim.
4. Rear seat cushion.
5. Right side carpet.
6. Right side carpet retainer.
7. Antenna extension cable rosebud retainers from the instrument panel.
8. Right lower instrument panel insulator.
9. Radio.
