Radio/Stereo: Service and Repair

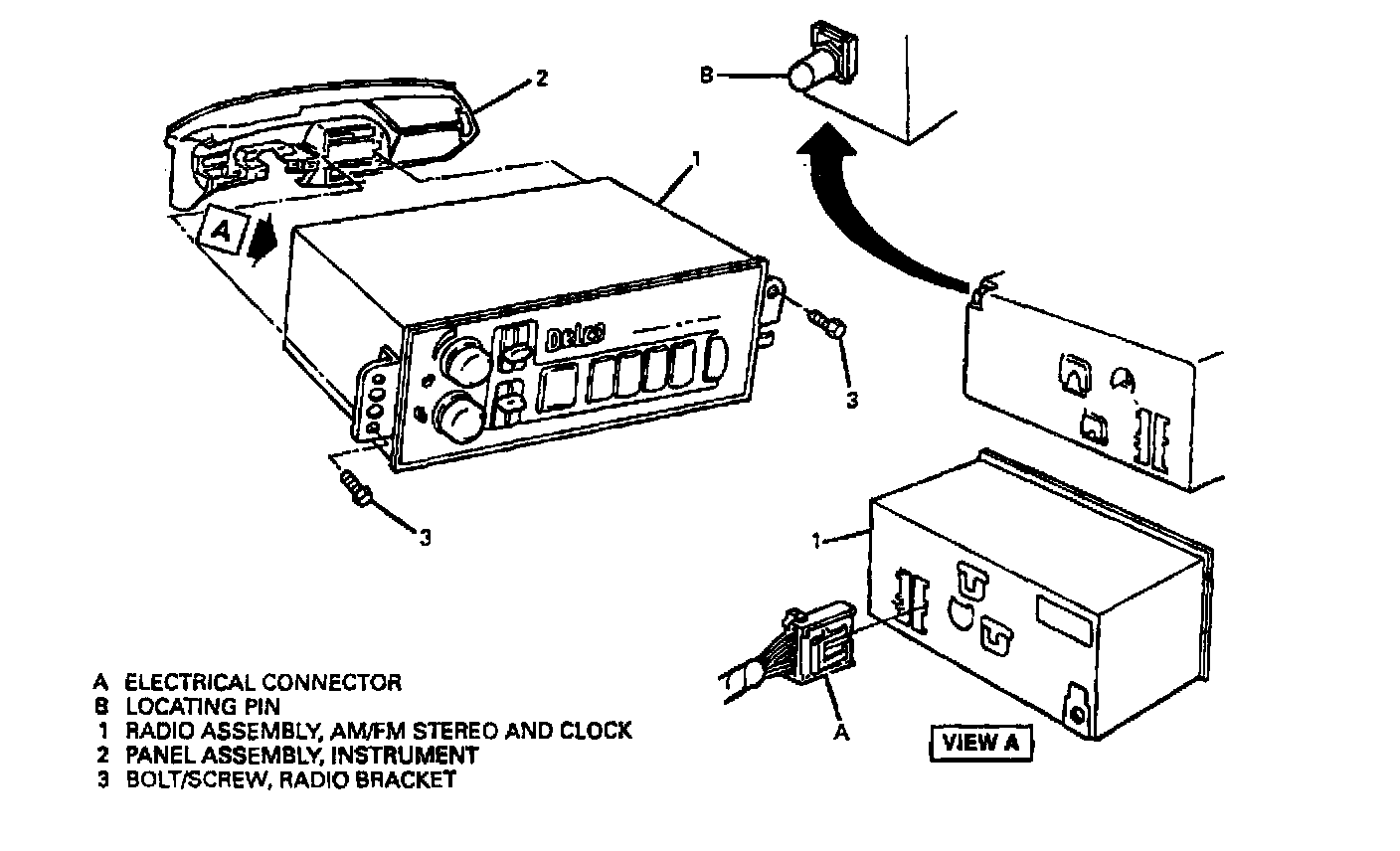

Radio:

REMOVE OR DISCONNECT
1. Instrument panel cluster trim plate.
2. Bolts/screws from radio.
3, Pull radio from instrument panel.
4. Electrical connector.

INSTALL OR CONNECT

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Electrical connector.
2. Align radio to instrument panel and push into place
3. Bolts/screws to radio.

Tighten
^ Bolts/screws to 2 N.m (18 lb. in,).

4. Instrument panel cluster trim plate.
