Heated Glass Element Relay
>>
Pinout Description
Pinout Description

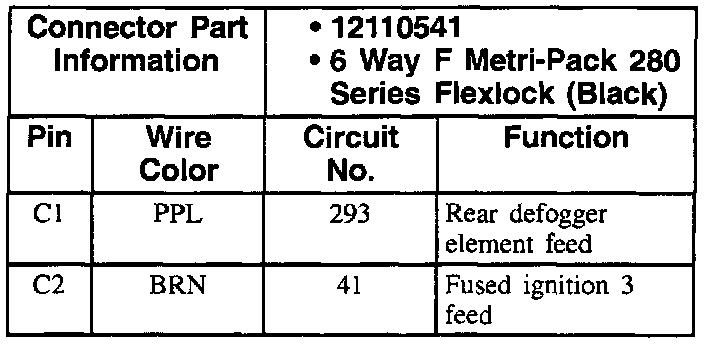

Rear Window Defogger Relay (Part 1 Of 2):

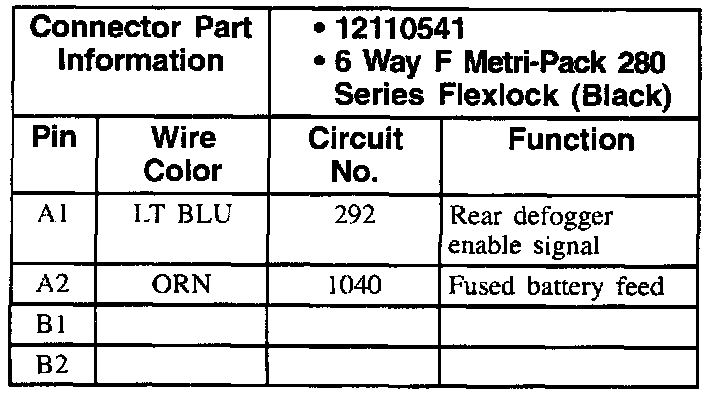

Rear Window Defogger Relay (Part 2 Of 2):
