Home >> Chevrolet >> 1998 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Pinout Description

Pinout Description

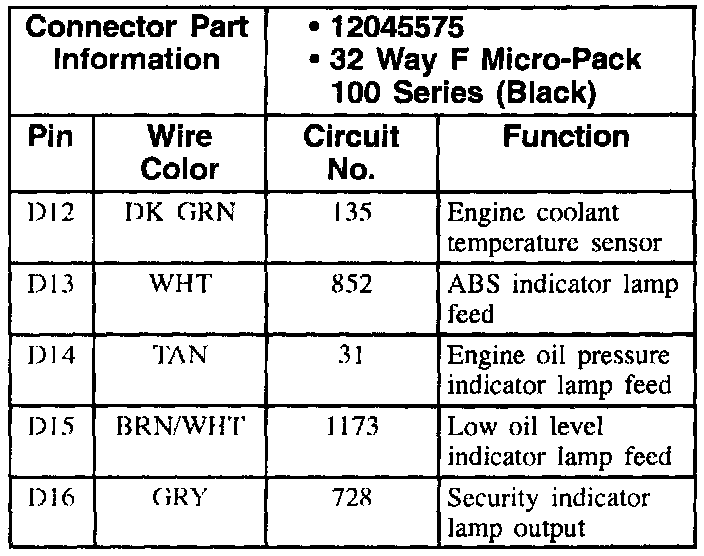

Instrument Cluster (Part 1 Of 3):



Instrument Cluster (Part 2 Of 3):



Instrument Cluster (Part 3 Of 3):
