Monte Carlo V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Outside Mirror
Outside Mirror

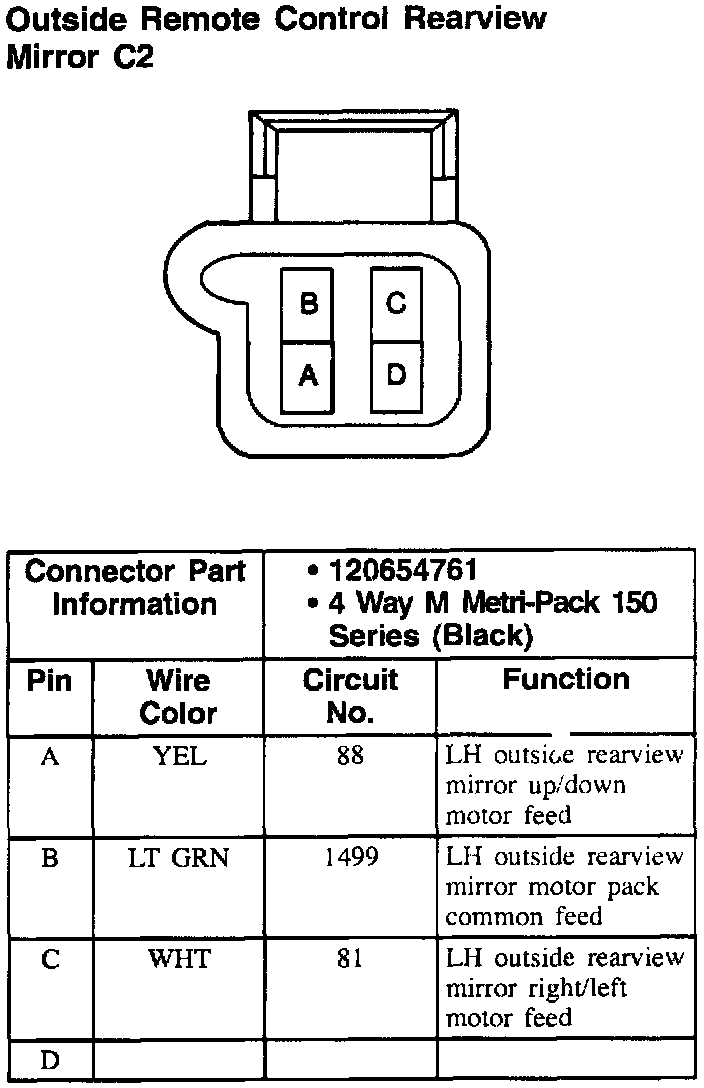

Outside Remote Control Rearview Mirror: C2:

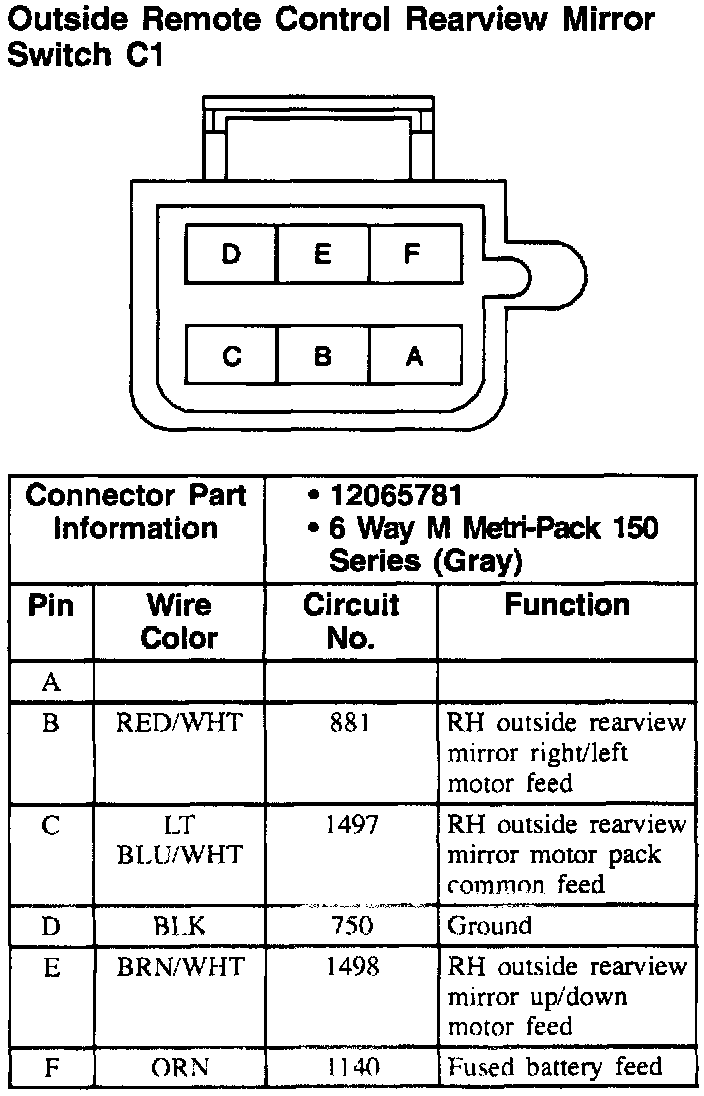

Outside Remote Control Rearview Mirror: C1:
