Oxygen Sensor
Oxygen Sensor
Heated Oxygen Sensor (HO2S) No. 2:

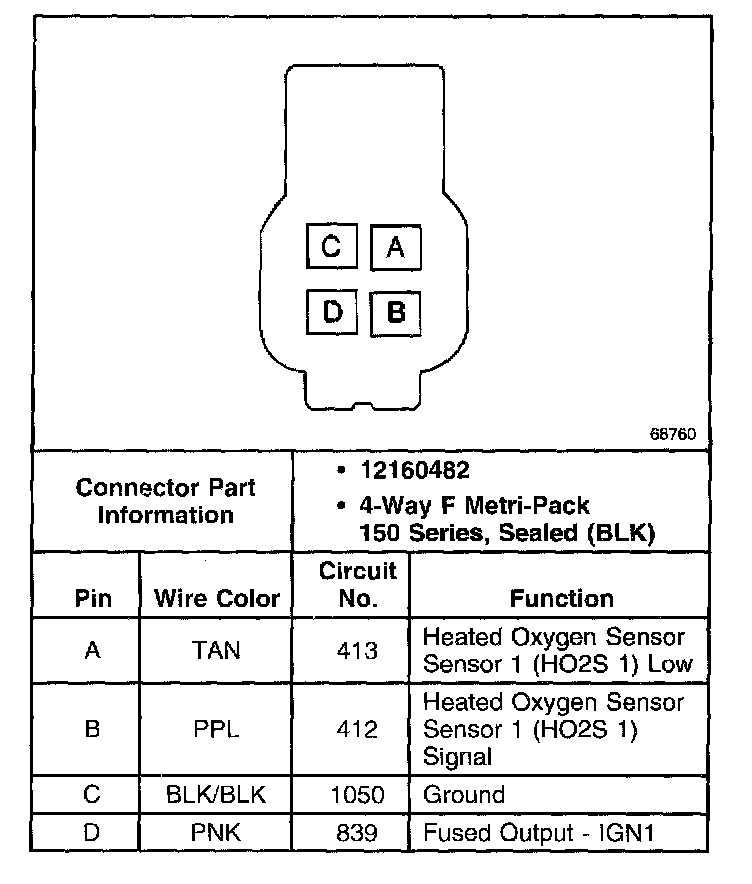

Heated Oxygen Sensor (HO2S 1) Sensor #1:
