Home >> Chevrolet >> 1998 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Lamp

Turn Signal Lamp

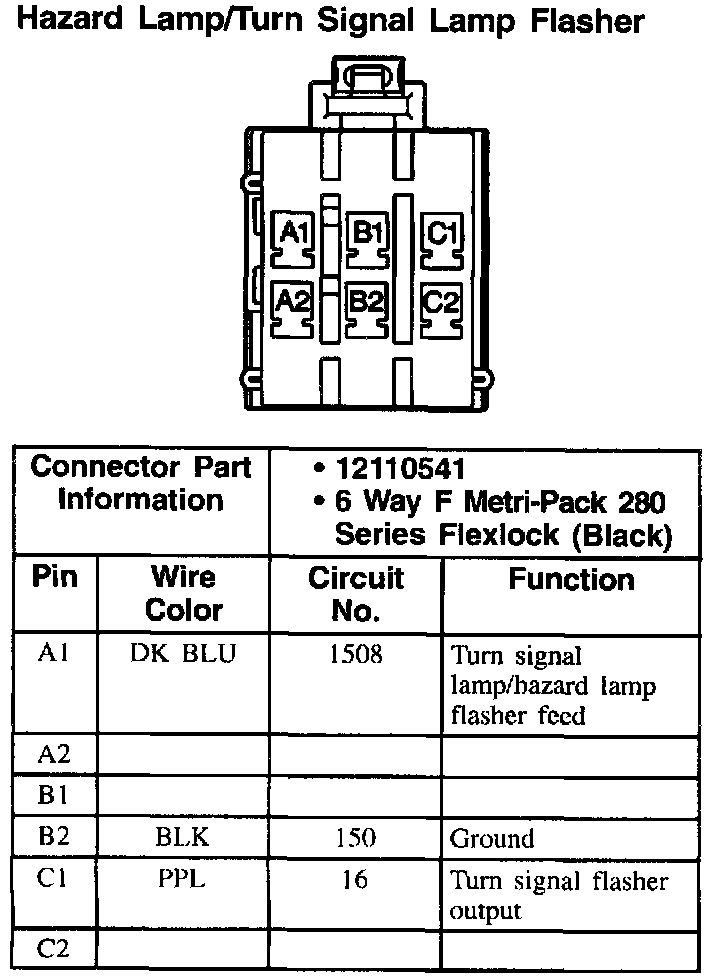

Hazard Lamp/Turn Signal Lamp Flasher:
