Home >> Chevrolet >> 1998 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor >> C1

C1

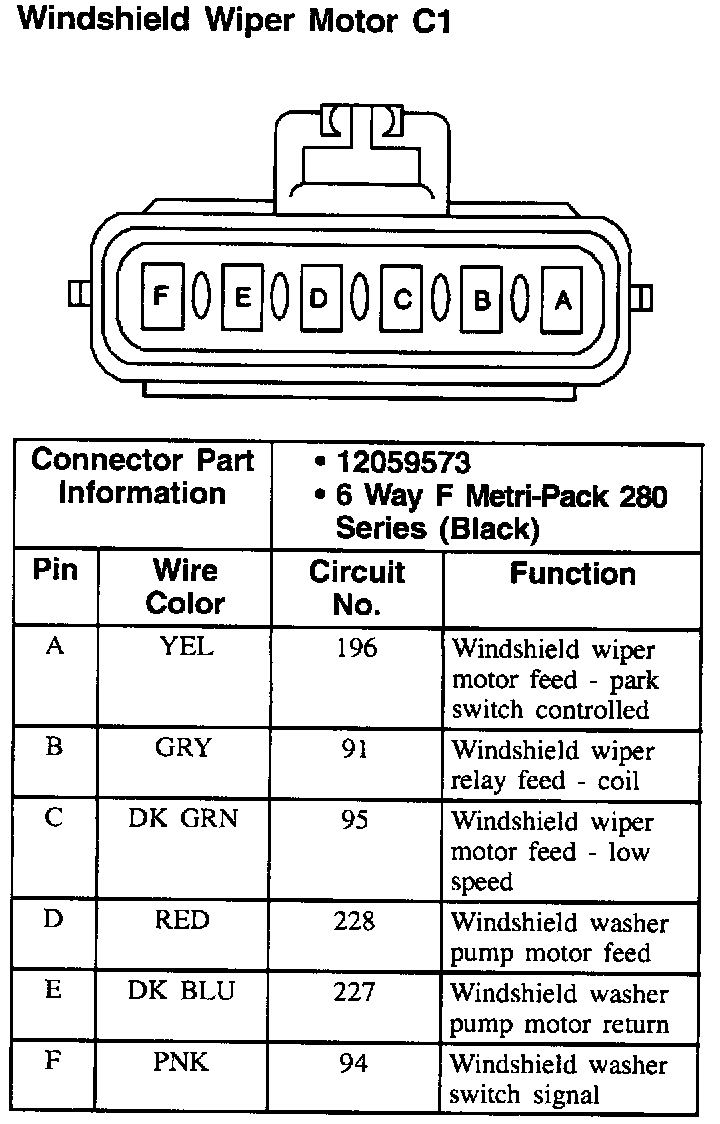

Windshield Wiper Motor: C1:
