Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

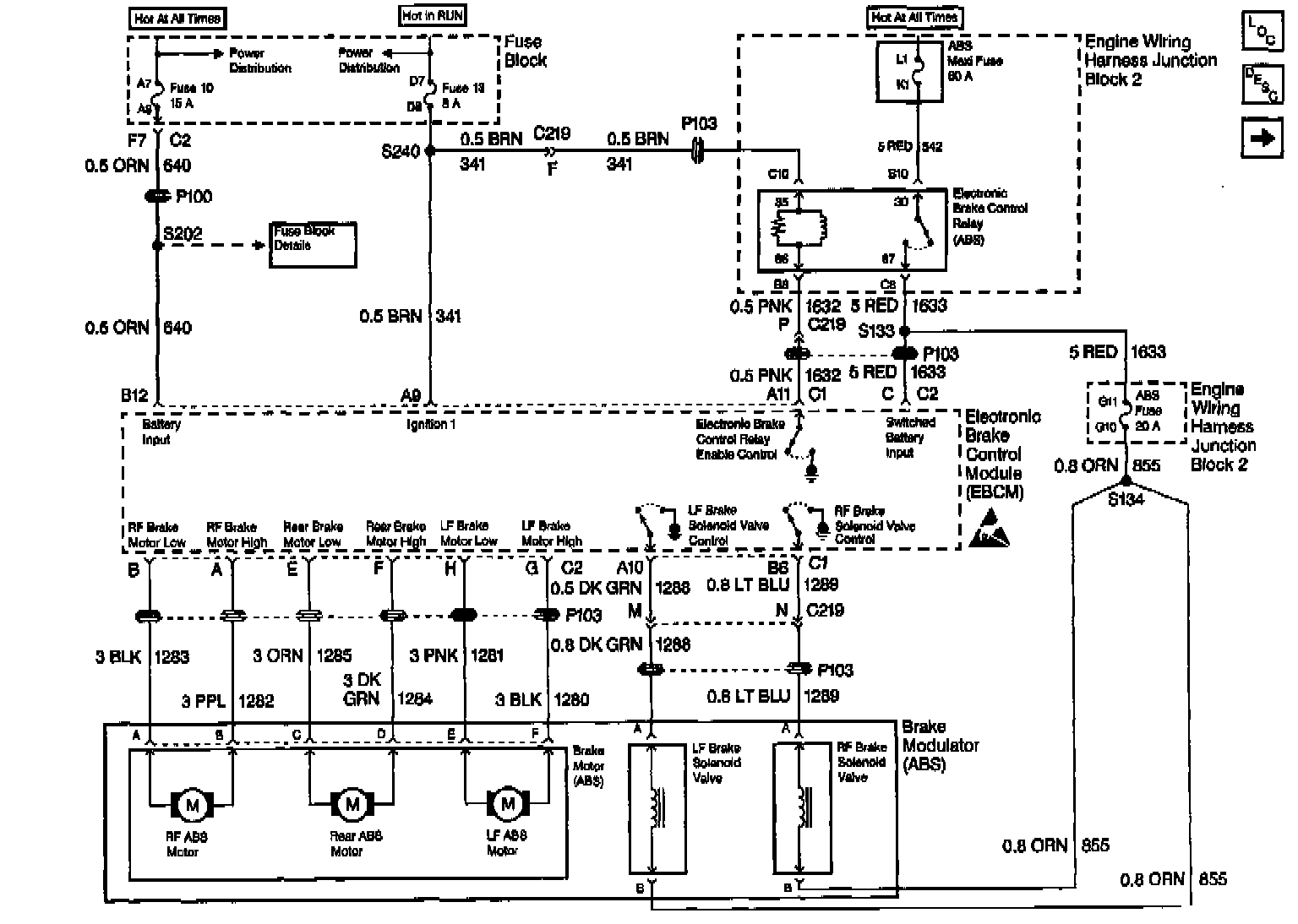

Power, EBCM, Brake Modulator:
Power, Ground, Instrument Cluster, EBCM:

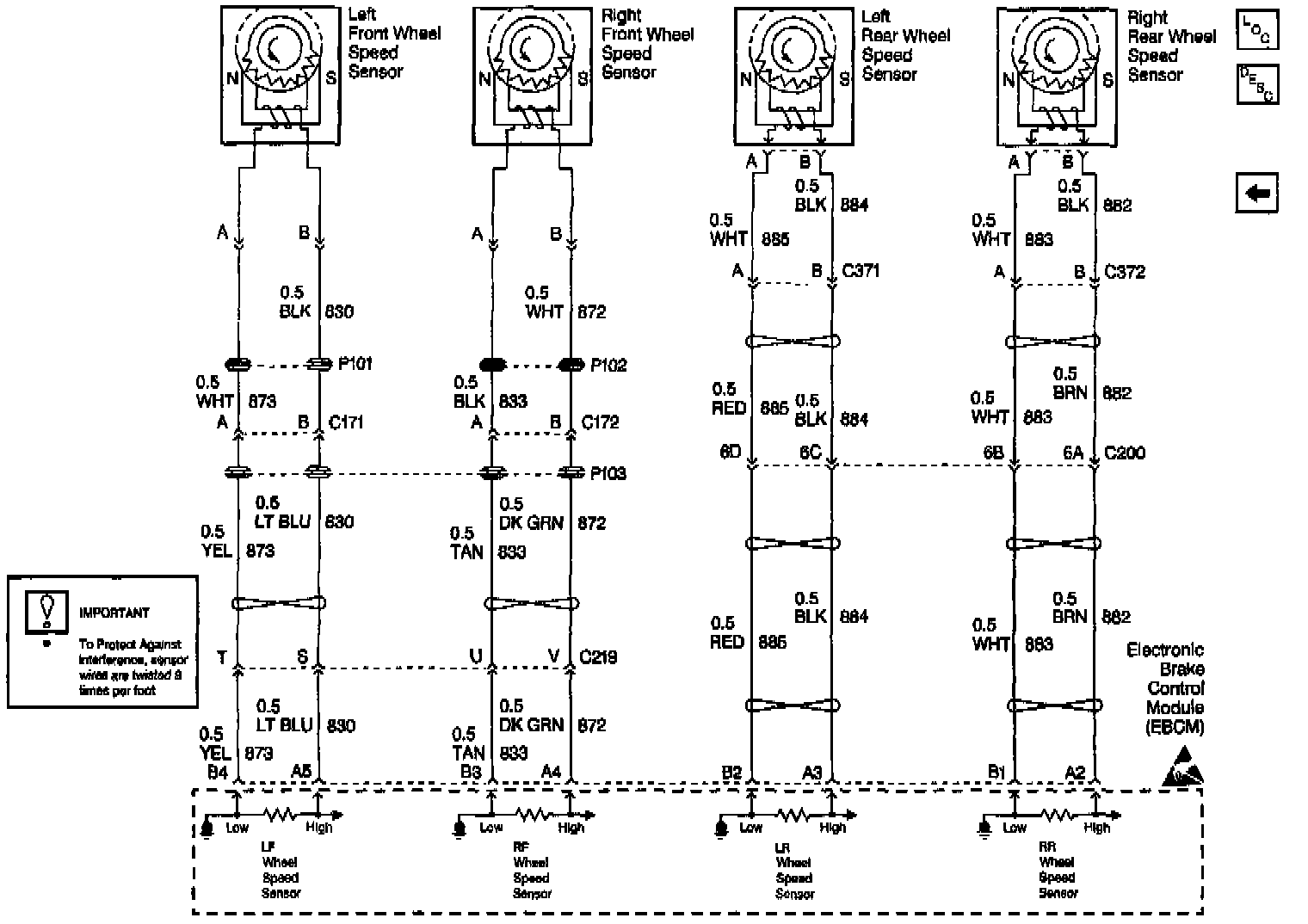

Wheel Speed Sensors, EBCM:
