Shift Interlock, A/T
Shift Interlock, A/T

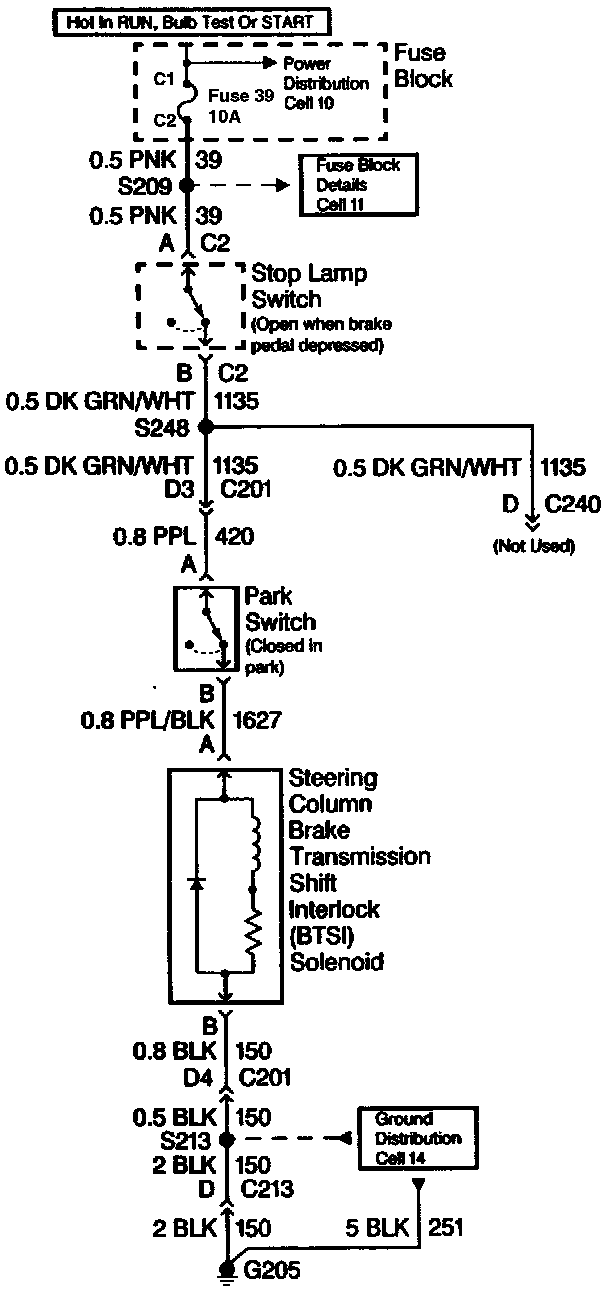

Steering Column Brake Transmission Shift Interlock (BTSI) (Part 1 Of 2):
Steering Column Brake Transmission Shift Interlock (BTSI) (Part 2 Of 2):
