Monte Carlo V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Compressor Controls (C60/CJ3)
Compressor Controls (C60/CJ3)

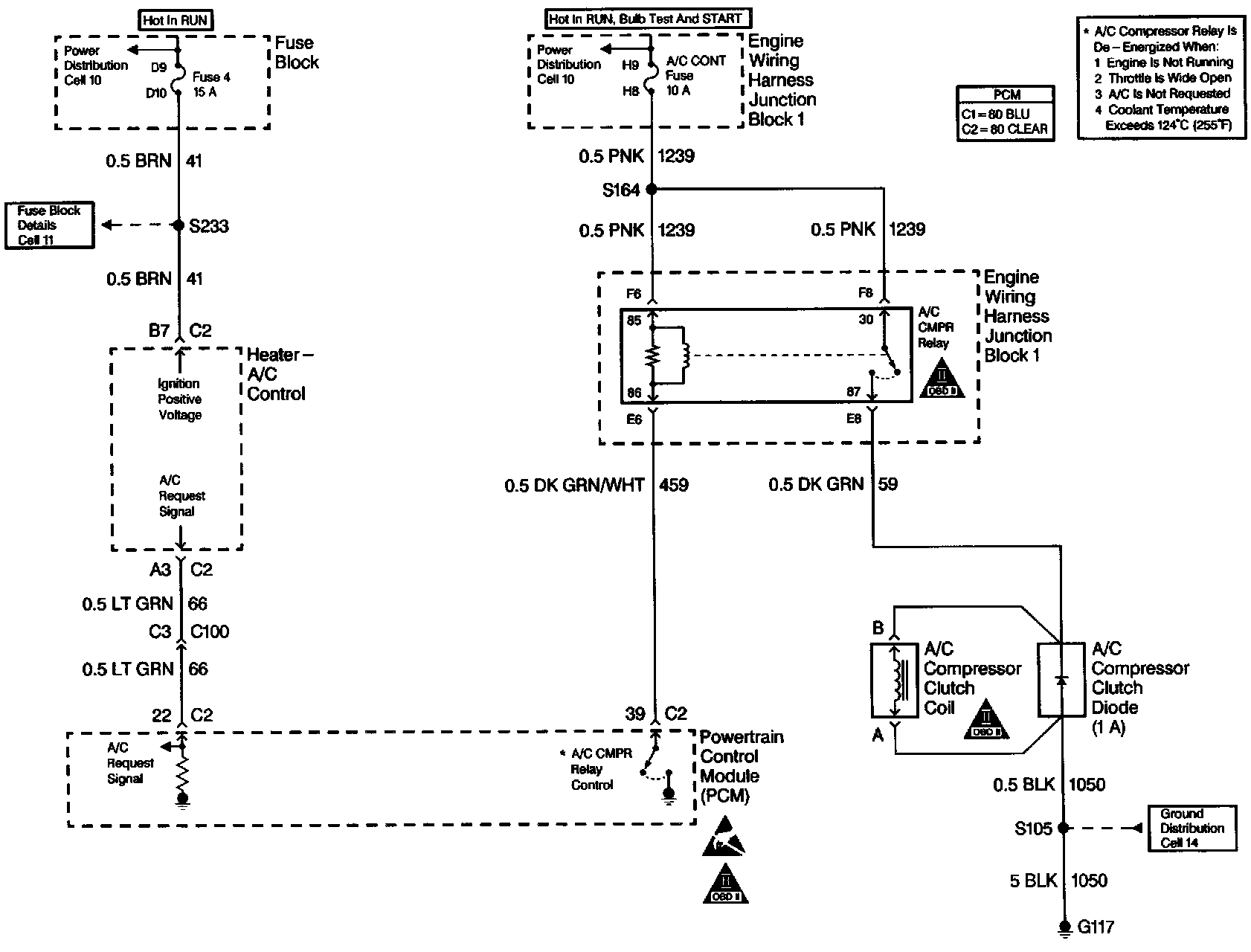

HVAC Compressor Control (C60/CJ3):
