Instrument Panel Ashtray

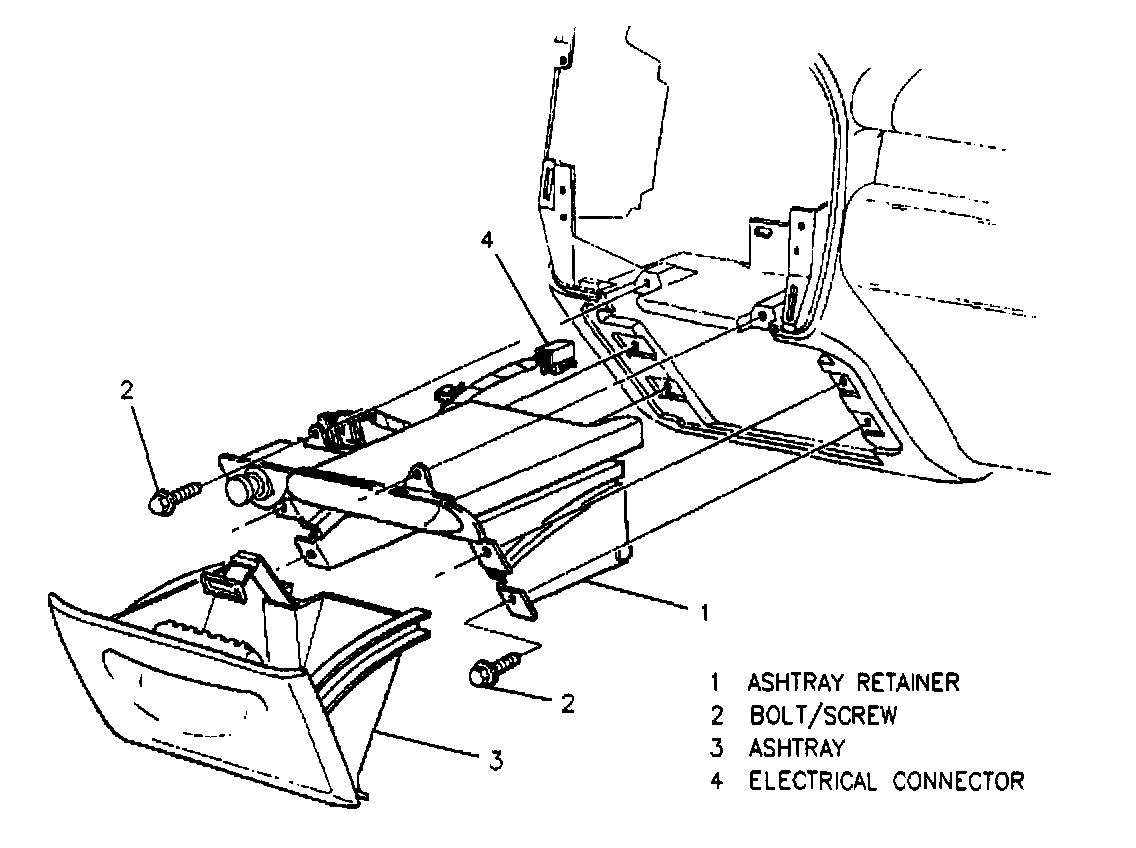

Instrument Panel Ashtray:

REMOVE OR DISCONNECT
1. Instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate.
2. Open and remove instrument panel ashtray.
3. Screws from ashtray bracket.
4. Instrument panel ashtray from instrument panel.
5. Electrical connector from cigarette lighter.

INSTALL OR CONNECT
1. Electrical connector to cigarette lighter.
2. Position instrument panel ashtray to instrument panel
3. Screws to instrument panel ashtray bracket.

Tighten
^ Screws to 2 Nm (18 lb. in).

4. Install and close instrument panel ashtray.
