Trim Panel Replacement - Upper

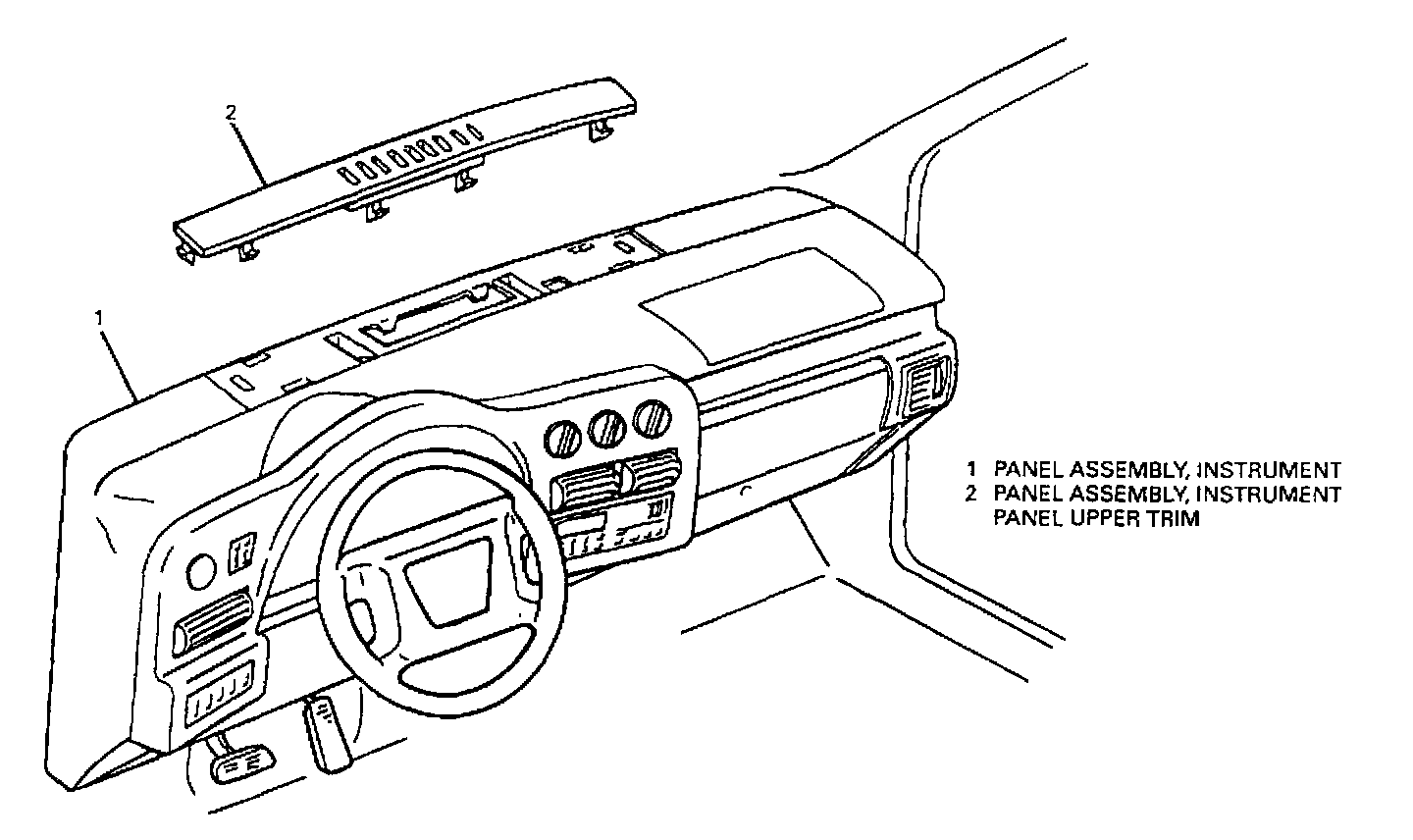

Instrument Panel Upper Trim Panel (Typical):

REMOVE OR DISCONNECT

NOTE: Use care when removing the instrument panel upper trim panel, as damage to the instrument panel and or upper trim panel could result.

1. Insert a flat-blade tool, downward at the rearmost edge of upper trim panel.
2. Pry panel up to release 10 panel tabs
3. Lift rear edge approximately 51 mm (2 inches) and pull panel rearward to remove.
4. Daytime running lamp sensor (DRL).

INSTALL OR CONNECT
1. Daytime running lamp sensor (DRL).
2. Carefully insert two front tabs.
3. Ten panel tabs into instrument panel. Snap down to secure.
