Instrument Panel Cluster Replacement

Instrument Panel Cluster:

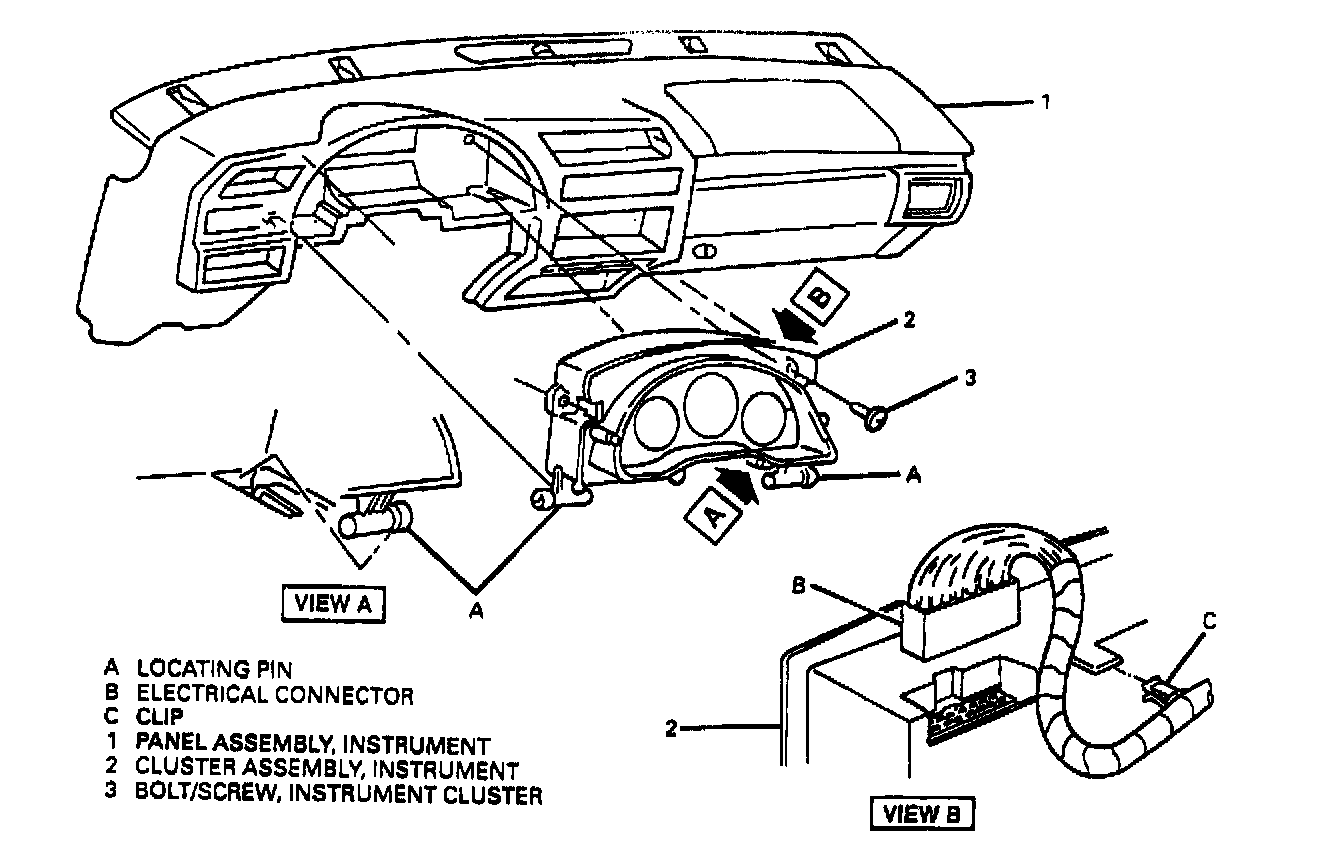

REMOVE OR DISCONNECT
1. Instrument panel cluster trim plate.
2. Bolts/screws from instrument panel cluster.
3. Rotate top of instrument panel cluster rearward and disengage locating pins on bottom of instrument panel cluster at the instrument panel.
4. Electrical connector.

INSTALL OR CONNECT

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Electrical connector.
2. Position locating pins on bottom of instrument panel cluster to pin receivers in instrument panel.
3. Bolts/screws to instrument panel cluster.

Tighten
^ Bolts/screws to 2 N.m (18 lb. in.).

4. Instrument panel cluster trim plate.
