Instrument Panel Cluster Trim Plate Replacement

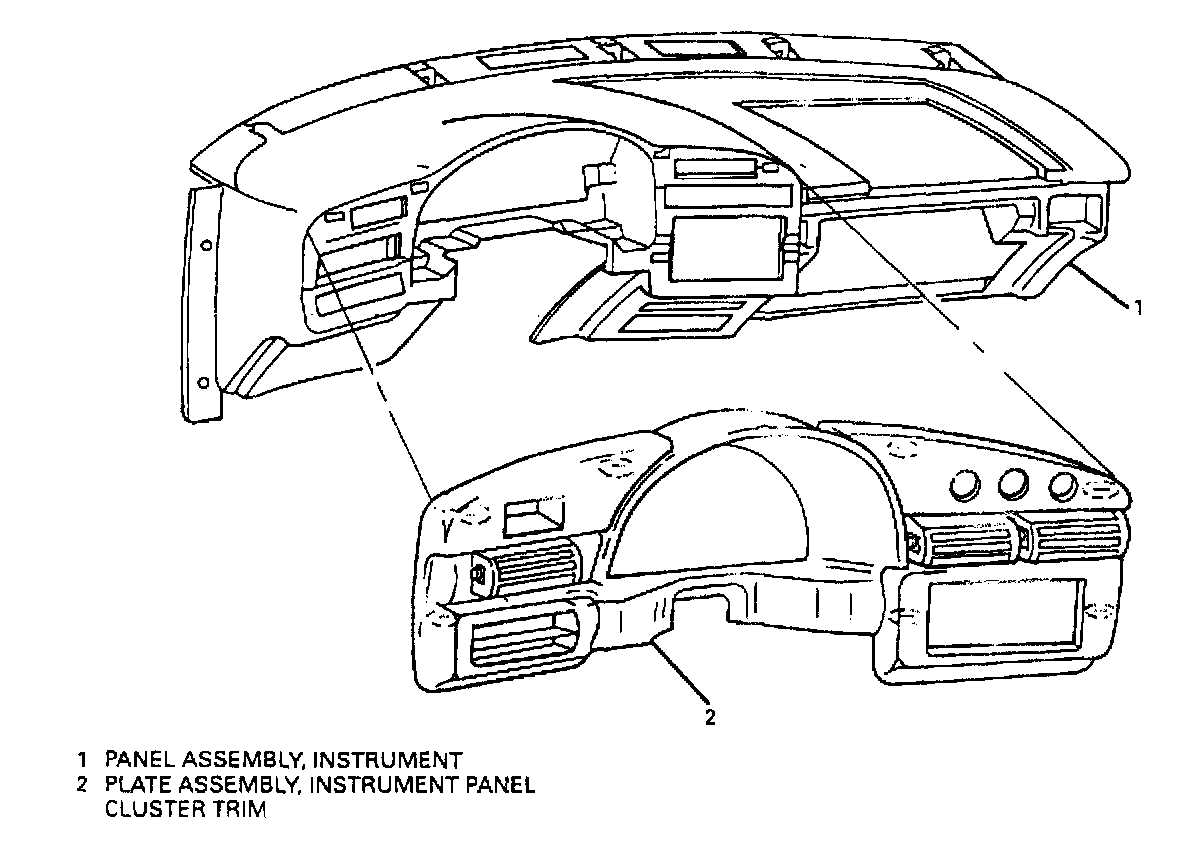

Instrument Panel Cluster Trim Plate:

REMOVE OR DISCONNECT
1. Move shift lever from Park to L1, if column shift.
2. Tilt steering column to lowest position.
3. Instrument panel cluster trim plate, by unsnapping clips from instrument panel.

INSTALL OR CONNECT
1. Instrument panel cluster trim plate by snapping in clips to instrument panel.
2. Move shift lever from L1 to Park, if column shift.
3. Till steering column to original position.
