Ambient Light Sensor: Service and Repair

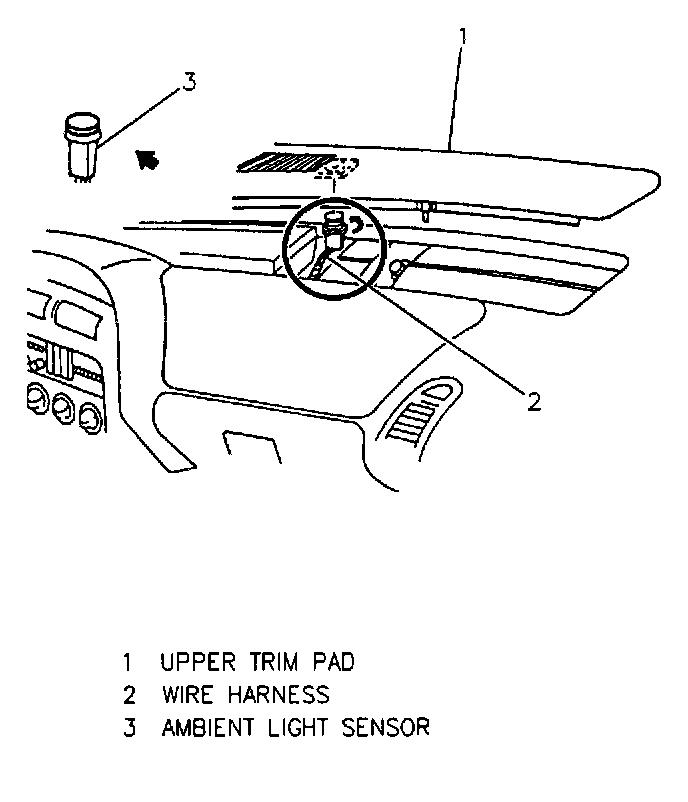

Ambient Light Sensor (ALS):

REMOVE OR DISCONNECT
1. Instrument panel upper trim pad.
2. Ambient lamp sensor from upper trim pad (twist).
3. Electrical connector from Ambient Lamp Sensor (ALS).

INSTALL OR CONNECT
1. Ambient lamp sensor to upper trim pad (twist).
2. Electrical connector to Ambient Lamp Sensor (ALS).
3. Instrument panel upper trim pad.
