Home >> Chevrolet >> 1998 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lamps

Exterior Lamps

Exterior Lights (Part 1 Of 3):

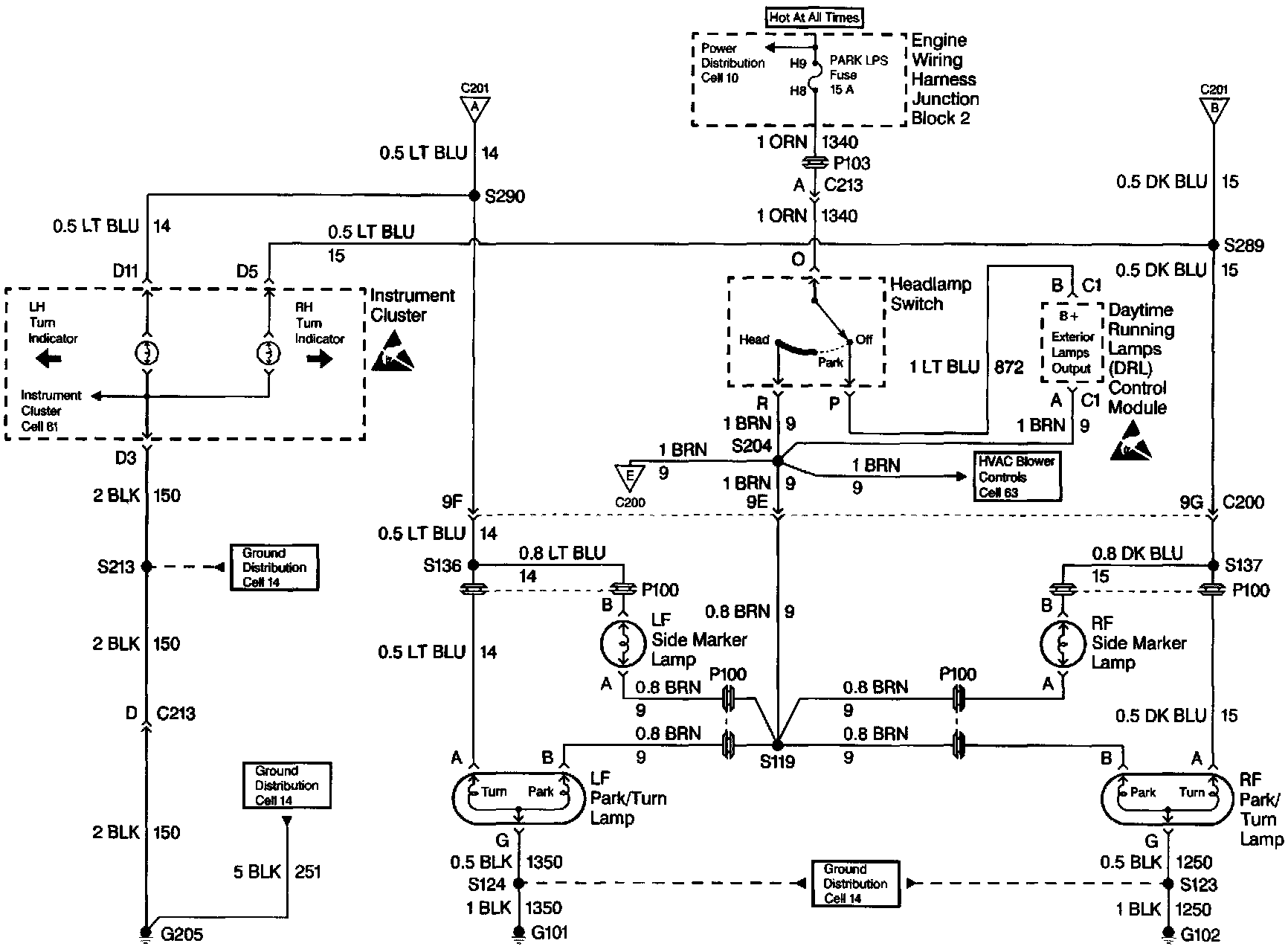

Exterior Lights (Part 2 Of 3):

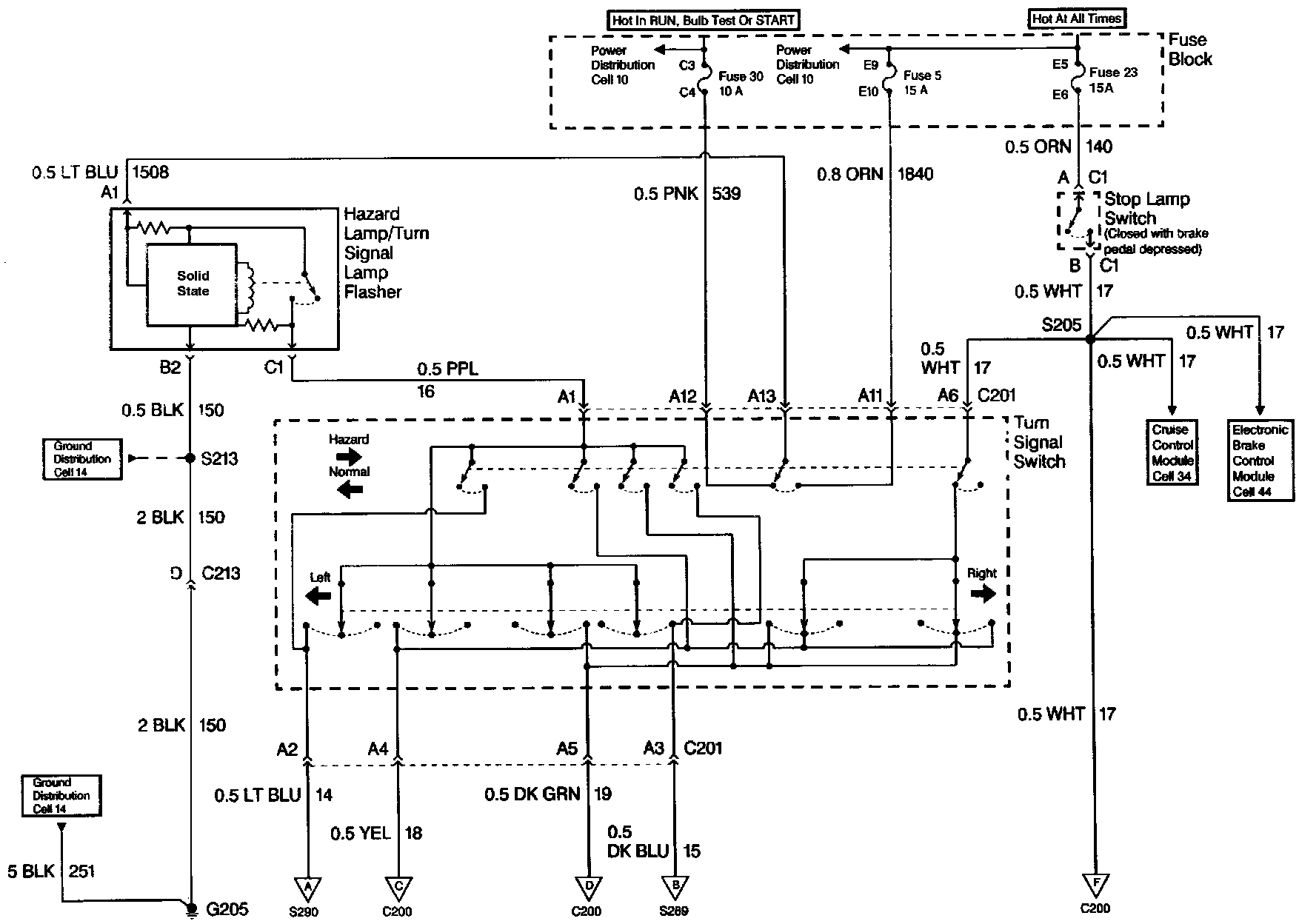

Exterior Lights (Part 3 Of 3):
