Home >> Chevrolet >> 1998 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID

Fuse: Application and ID

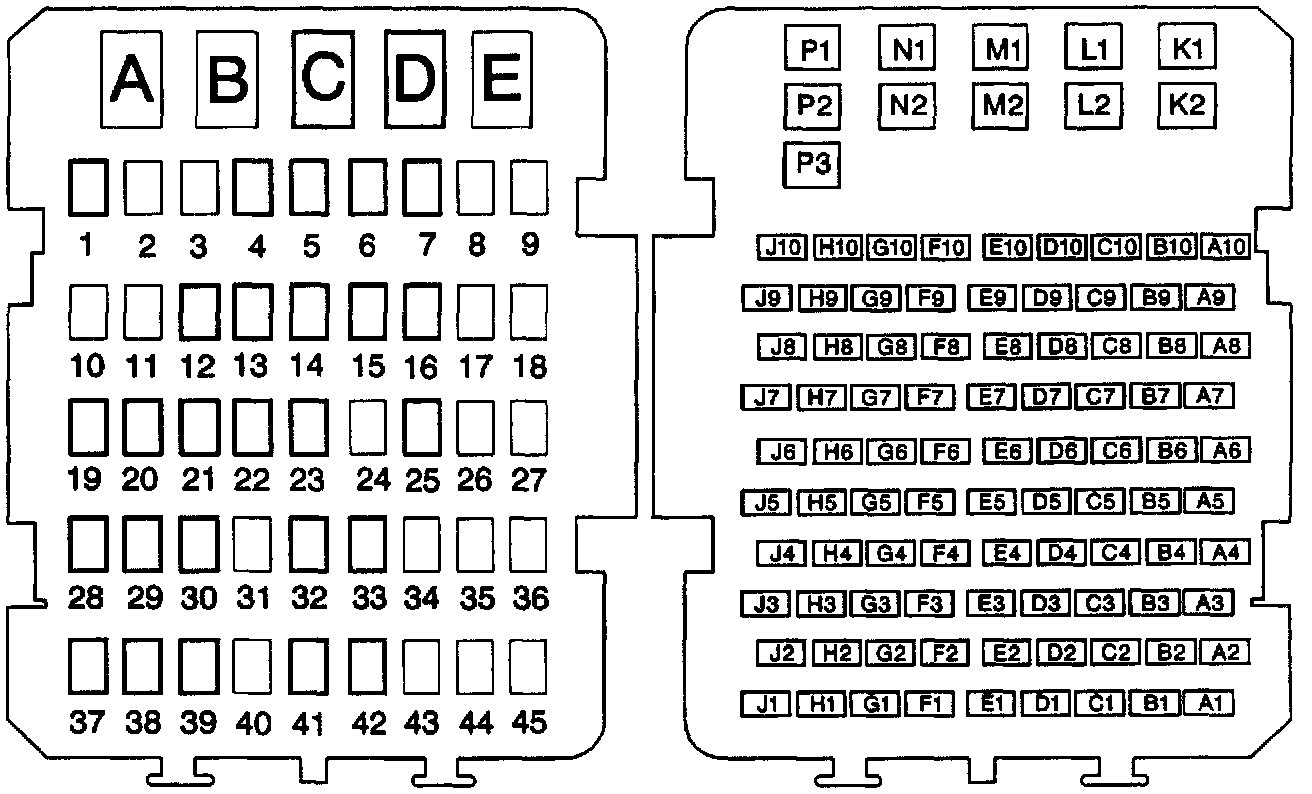

I/P Fuse Block:

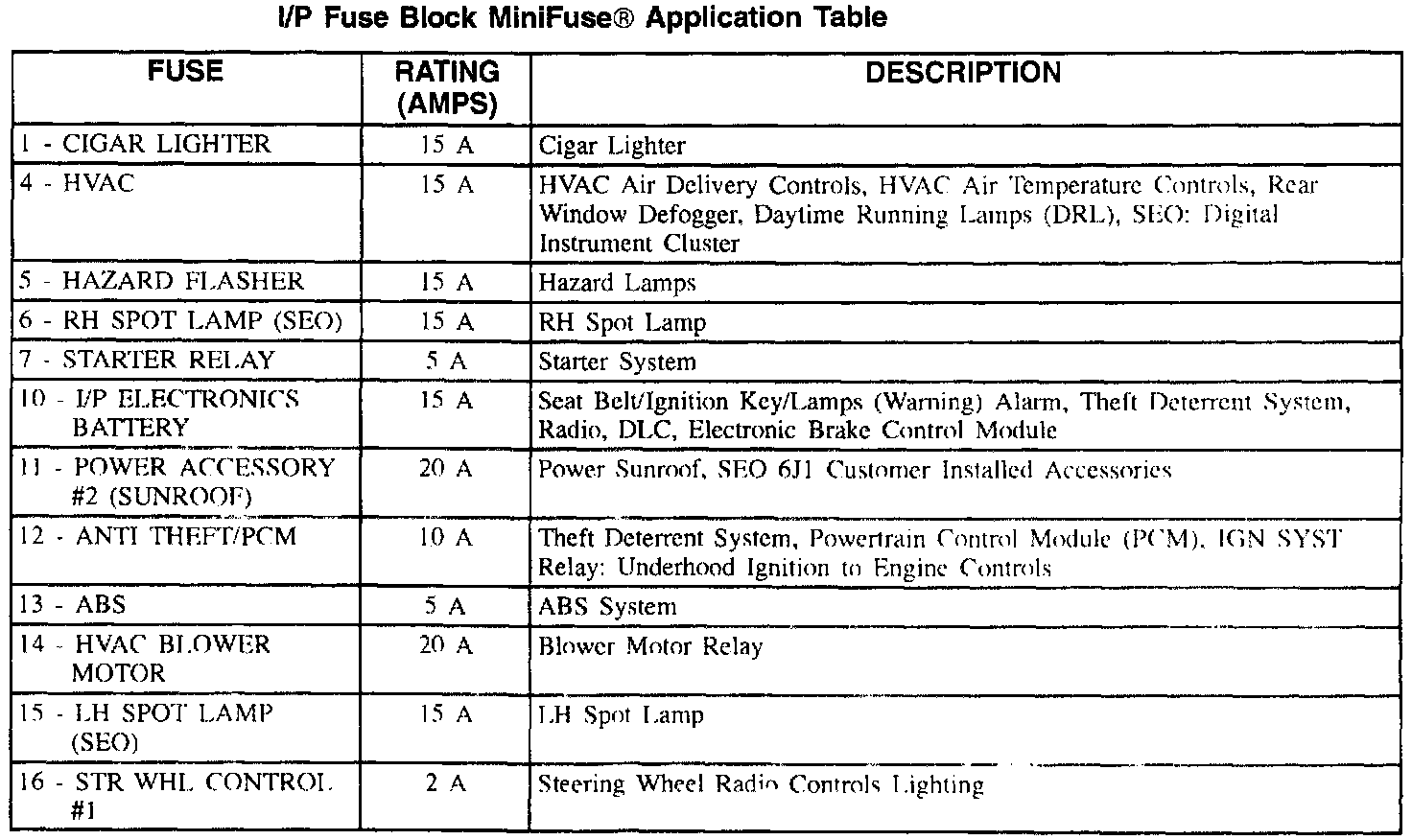

I/P Fuse Block MiniFuse(R) Application Table (Part 1 Of 2):

I/P Fuse Block MiniFuse(R) Application Table (Part 2 Of 2):
