Wiper Switch: Service and Repair

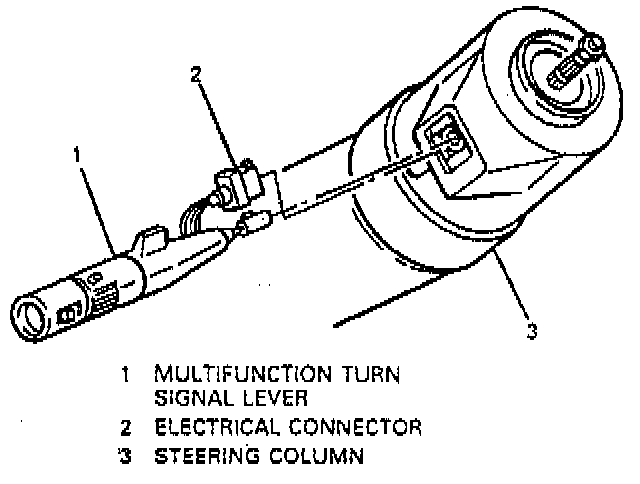

Multifunction Turn Signal Switch:

Remove or Disconnect
1. Make sure lever is in center of OFF position.
2. Electrical connection behind lever.
3. Switch lever by pulling straight out.

Install or Connect
1. Make sure switch lever is in center of OFF position.
2. Switch lever after aligning tab.
- Push straight in.
3. Electrical connection.

Inspect
- Test operation.
