Radio/Stereo: Service and Repair
REMOVAL PROCEDURERadio Replacement: Removal Procedure:
1. Remove the IP accessory center trim plate.
2. Remove the four screws (2) that secure the radio (1).

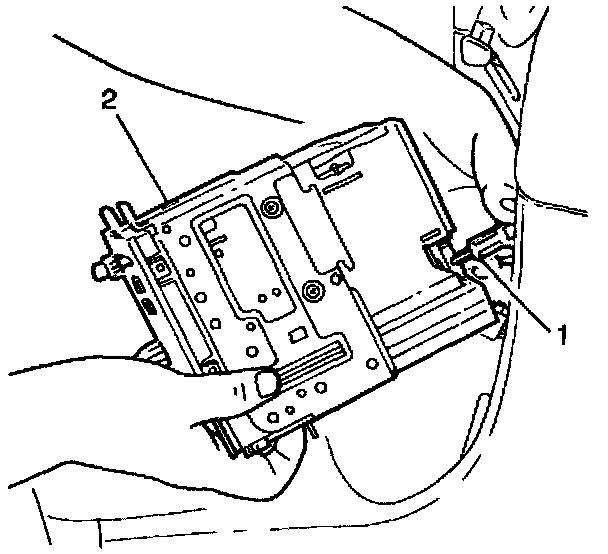

Radio Replacement: Removal Procedure:
3. Pull the radio (2) from the instrument panel.
4. Disconnect the following from the radio:
^ The electrical connector
^ The antenna lead (1)
INSTALLATION PROCEDURE
Radio Replacement: Installation Procedure:
1. Connect the radio electrical connector.
2. Connect the antenna lead (1) to the radio (2).
Radio Replacement: Installation Procedure:
3. Install the radio (1) to the instrument panel. Secure the radio with the four screws (2).
4. Install the IP accessory center trim plate.
