Molding Replacement: Rear Wheel Open

REMOVAL PROCEDURE

Molding Replacement: Rear Wheel Open - Removal Procedure:

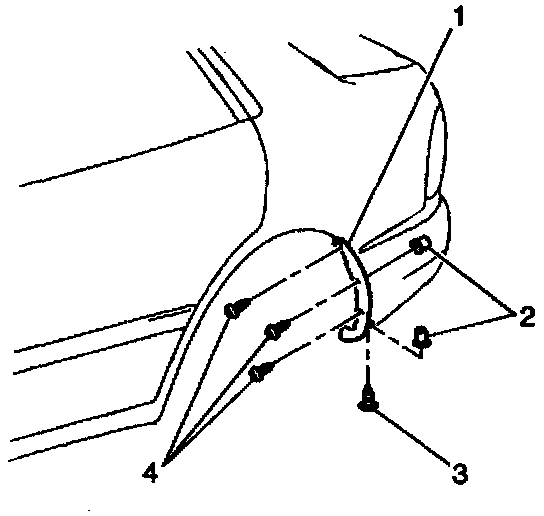

1. Remove the following retainers that secure the rear wheel opening molding:
^ The three screws (4)
^ The bolt (3)

2. Unclip and remove the rear wheel opening molding (1).

INSTALLATION PROCEDURE

Molding Replacement: Rear Wheel Opening - Installtion Procedure:

Install the rear wheel opening molding (1). Secure the molding with the following retainers:
^ The three screws (4)
^ The bolt (3)
