Manual Seat Replacement

REMOVAL PROCEDURE

Manual Seat Replacement: Removal Procedure:

1. Disconnect the negative battery cable.
2. Disable the SIR system, if equipped with side impact inflatable restraint modules.

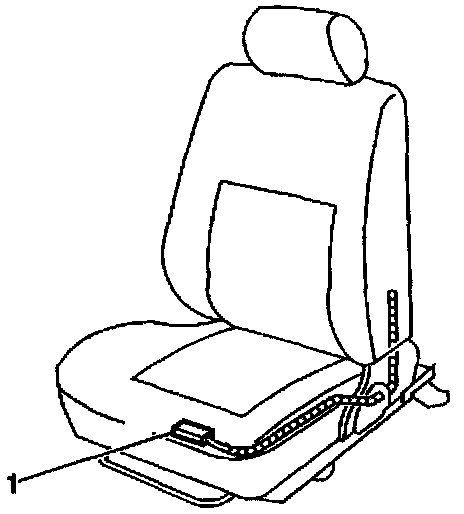

3. Disconnect the side impact inflatable restraint module electrical connector (1), if equipped. The electrical connector is located beneath the seat cushion.

Manual Seat Replacement: Removal Procedure:

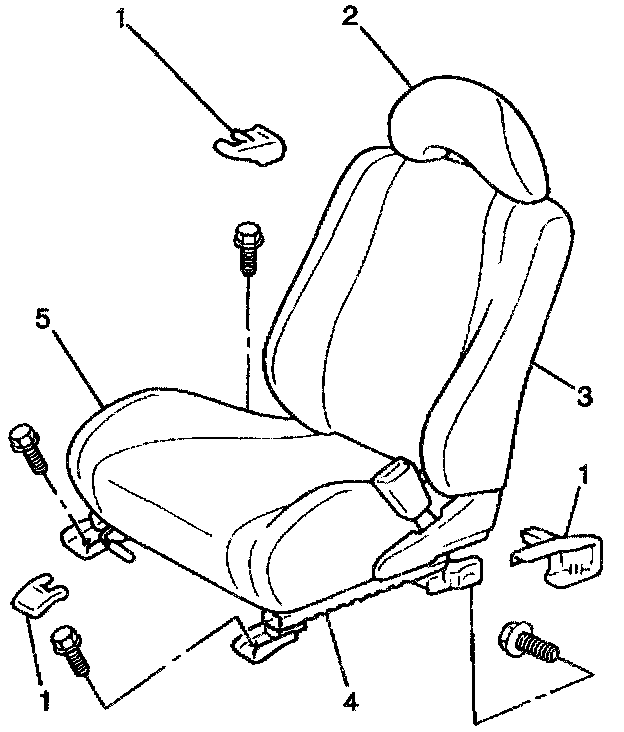

4. Remove the following components from the vehicle:
^ The seat bolt finish covers (1)
^ The four bolts
^ The front seat assembly

INSTALLATION PROCEDURE

Manual Seat Replacement: Installation Procedure:

1. Install the front seat assembly to the vehicle. Secure the seat with the four bolts.

Tighten
Tighten the front seat assembly bolts to 37 N.m (27 lb ft).

2. Install the seat bolt finish covers (1).

Manual Seat Replacement: Installation Procedure:

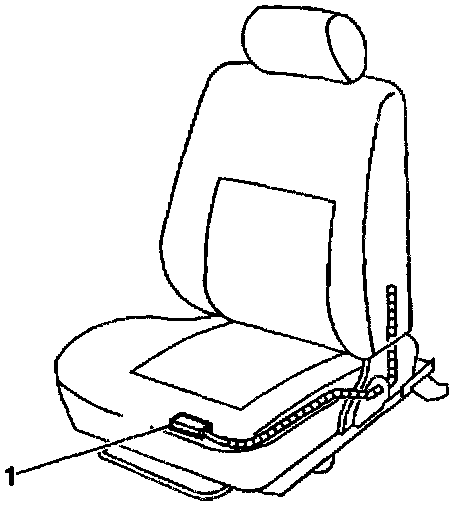

3. Connect the side impact inflatable restraint module electrical connector (1), if equipped.
4. Enable the SIR system, if disabled.
5. Connect the negative battery cable.
