Seat Adjuster Replacement - Front

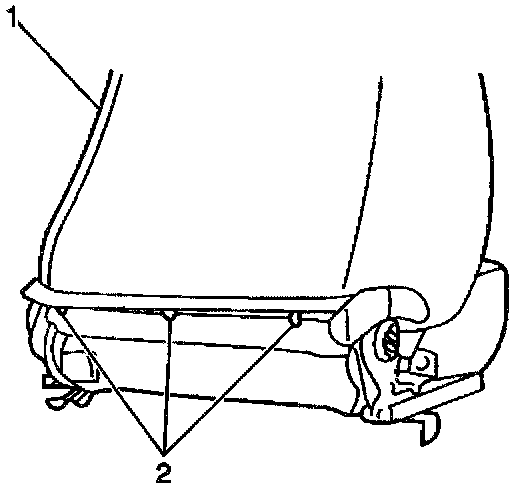

REMOVAL PROCEDURESeat Adjuster Replacement: Front - Removal Procedure:
1. Remove the front seat cushion.
2. Cut and remove the hog rings. Slightly roll up the seat back cushion cover (1).

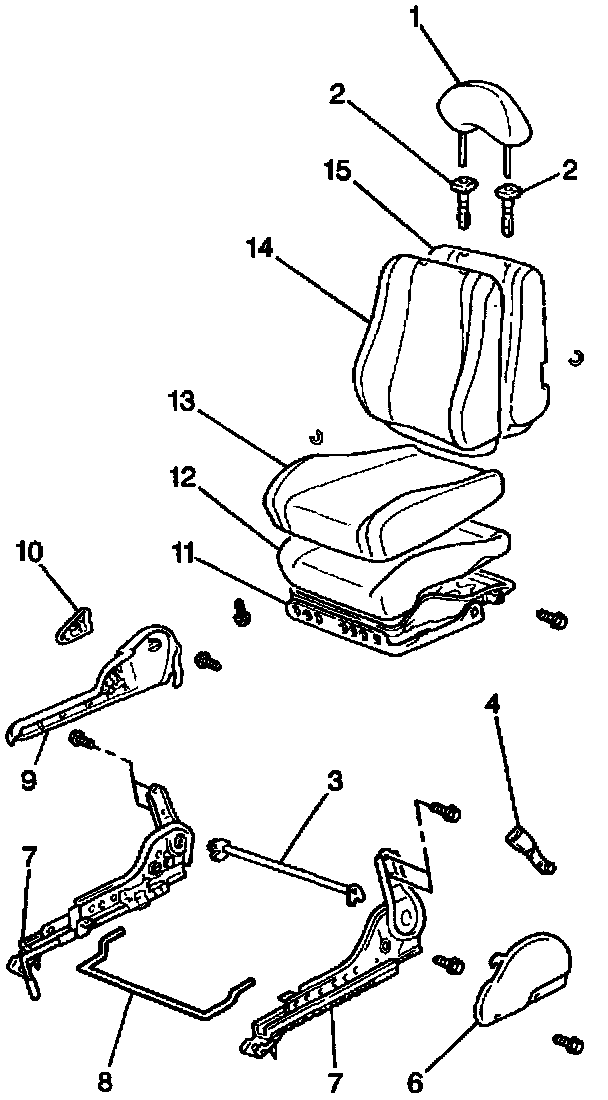

Seat Adjuster Replacement: Front - Removal Procedure:
3. Remove the following components from the front seat adjusters (7):
^ The reclining pivot shaft (3)
^ The four bolts
^ The seat back cushion
INSTALLATION PROCEDURE
Seat Adjuster Replacement: Front - Installation Procedure:
1. Install the seat back cushion to the front seat adjusters (7). Secure the cushion with the four bolts.
Tighten
Tighten the seat back cushion bolts to 43 N.m (32 lb ft).
2. Install the reclining pivot shaft (3) to the front seat adjusters (7).
Seat Adjuster Replacement: Front - Installation Procedure:
3. Roll the seat back cushion cover (1) down onto the seat back cushion.
4. Use hog ring pliers to install new hog rings (2). Ensure that the seat back cushion cover is secure.
5. Install the front seat cushion.
