Seat Back Cover and Pad Replacement - Front
REMOVAL PROCEDURESeat Back Cover And Pad Replacement: Front - Removal Procedure:
1. Remove the front seat cushion.

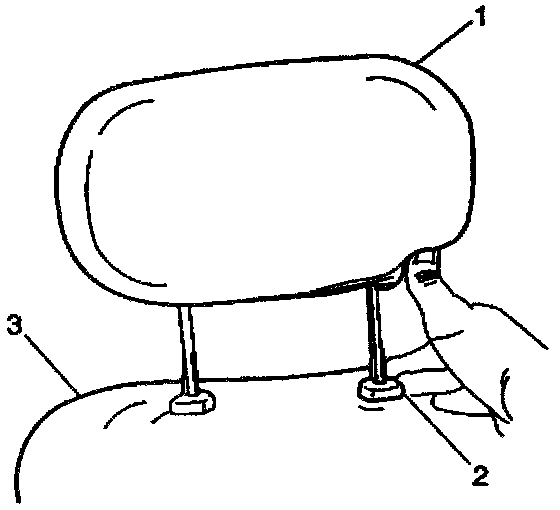

2. Remove the head restraint (1) from the seat back cushion (3).
Seat Back Cover And Pad Replacement: Front - Removal Procedure:

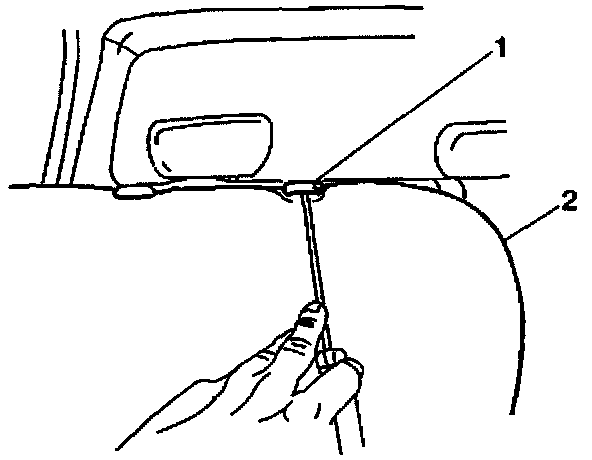

3. Gently pry the head restraint guides (1) from the seat back cushion (2) using a flat bladed tool.
Seat Back Cover And Pad Replacement: Front - Removal Procedure:

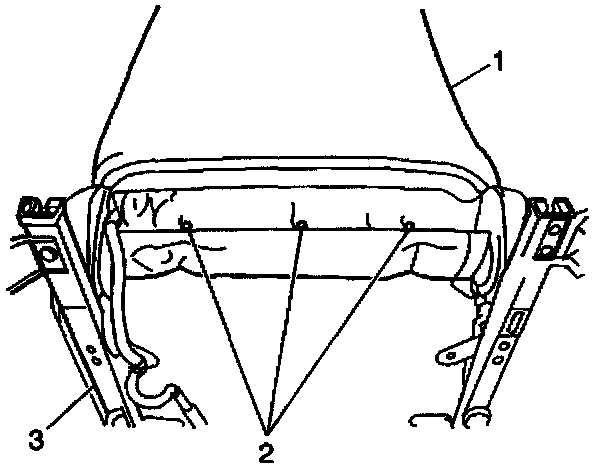

4. Cut and remove the hog rings (2).
5. Roll the seat back cushion cover (1) upward slowly and evenly.
6. Remove the seat back cushion pad from the frame, if necessary.
INSTALLATION PROCEDURE
Seat Back Cover And Pad Replacement: Front - Installation Procedure:
1. Install the seat back cushion pad to the frame, if removed.
2. Roll the seat back cushion cover (1) down over the seat back cushion.
3. Use hog ring pliers to install new hog rings (2). Ensure that the seat back cushion cover is secure.
Seat Back Cover And Pad Replacement: Front - Installation Procedure:
4. Install the head restraint guides (2) to the seat back cushion (3).
5. Install the head restraint (1) to the seat back cushion (3).
6. Install the front seat cushion.
