Seat Back Frame Replacement - Front
REMOVAL PROCEDURESeat Back Frame Replacement: Front - Removal Procedure:
1. Remove the front seat back cushion cover and pad.

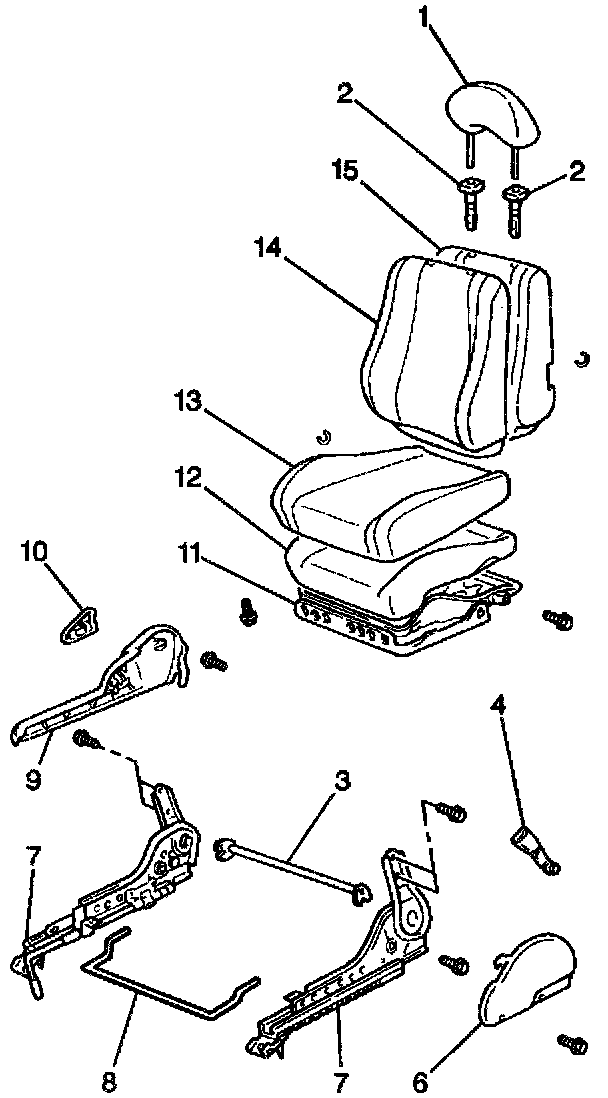

2. Remove the following components from inner seat adjuster (7):
^ The screw
^ The inboard finish cover (6)
3. Remove the recliner handle (10) from the outer seat adjuster (7).
4. Gently pry the outboard finish cover (9) from the outer seat adjuster (7).
Seat Back Frame Replacement: Front - Removal Procedure:

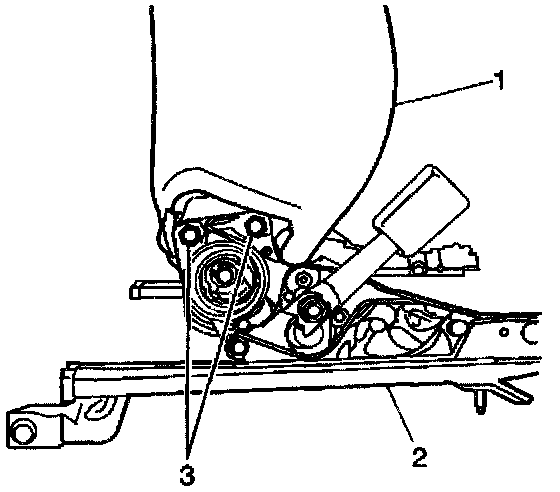

5. Remove the following components from the seat adjusters:
^ The two bolts (3) which secure each side of the seat back (1) to the seat adjusters (2)
^ The seat back cushion frame
INSTALLATION PROCEDURE
Seat Back Frame Replacement: Front - Installation Procedure:

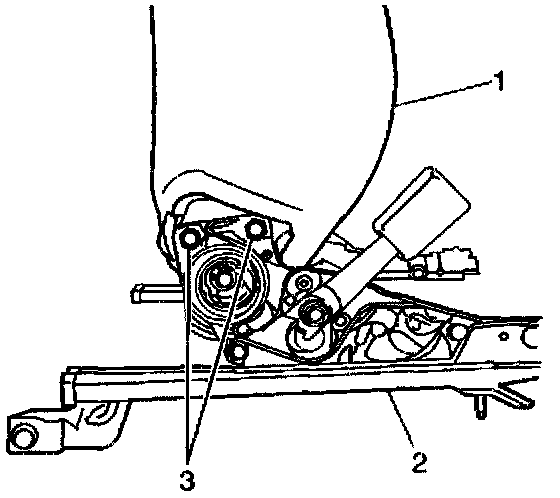

1. Install the seat back (1) cushion frame to the seat adjusters. Secure the frame with the two bolts (3) at each seat adjuster.
Seat Back Frame Replacement: Front - Installation Procedure:

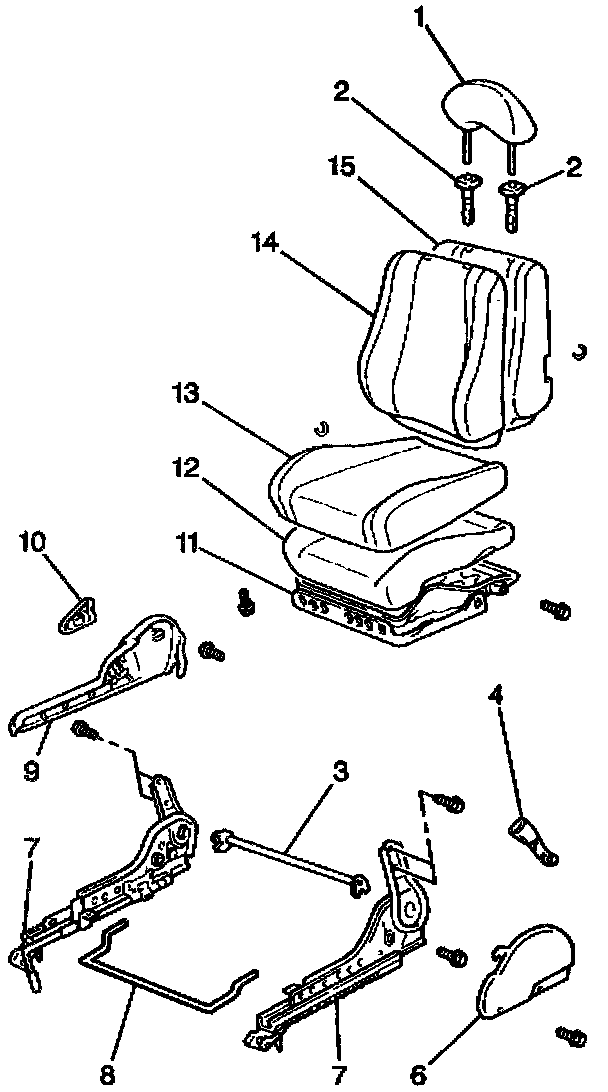

2. Install the outboard finish cover (9) to the outer seat adjuster (7).
3. Install the recliner handle (10) to the outer seat adjuster (7).
4. Install the inboard finish cover (6) to the inner seat adjuster (7).
5. Install the front seat back cushion cover and pad.
