Seat Back Hinge Replacement - Rear Outer

REMOVAL PROCEDURE

Seat Back Hinge Replacement: Rear Outer - Removal Procedure:

1. Remove the rear seat back cushion.
2. Remove the following components from the vehicle:

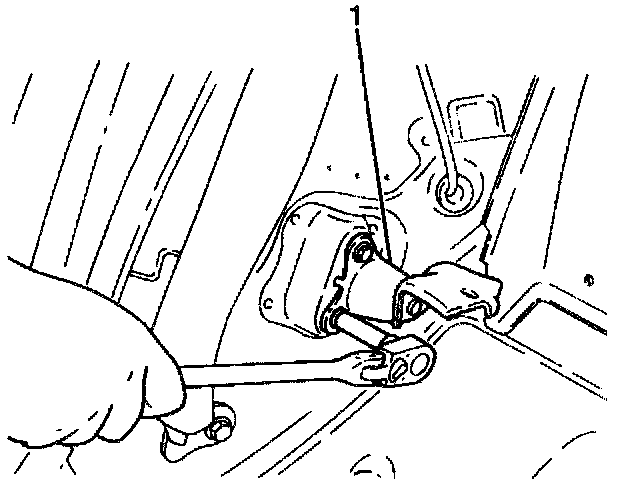

^ The two bolts that secure the rear seat back cushion outer pivot support
^ The rear seat back cushion outer pivot support (1)

INSTALLATION PROCEDURE

Seat Back Hinge Replacement: Rear Outer - Installation Procedure:

1. Install the rear seat back cushion outer pivot support (1) to the vehicle. Secure the support with the two bolts.

Tighten
Tighten the outer pivot support boils to 7.9 N.m (70 lb in).

2. Install the rear seat back cushion.
