Seat Back Replacement - Rear Split Folding
REMOVAL PROCEDURESeat Back Replacement: Rear Split Folding - Removal Procedure:
1. Fold the rear seat back cushion to the down position.
2. Remove the two plastic carpet retainers that secure the back of the seat back cushion cover to the rear compartment area.

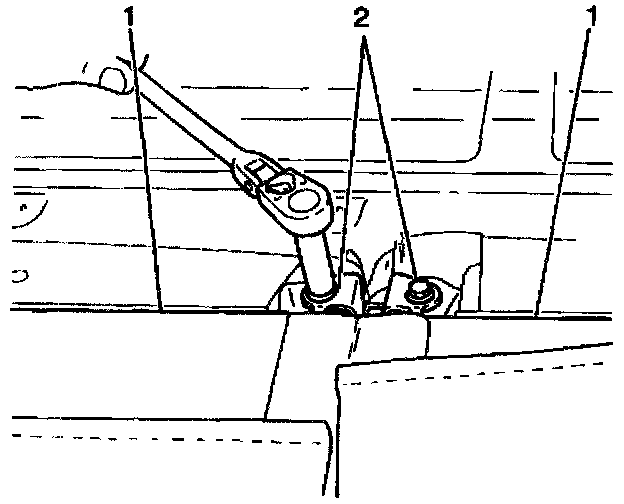

3. Remove the outer pivot support bolt (2) from the rear seat back cushion (1).
Seat Back Replacement: Rear Split Folding - Removal Procedure:
4. Remove the following components from the vehicle:

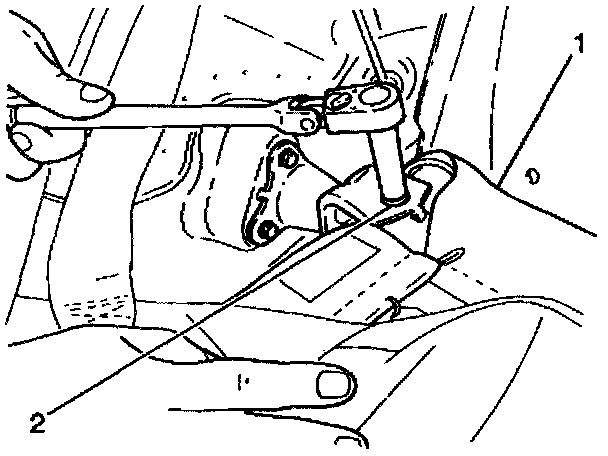

^ The center pivot support bolt (2)
^ The rear seat back cushion (1)
Seat Back Replacement: Rear Split Folding - Installation Procedure:

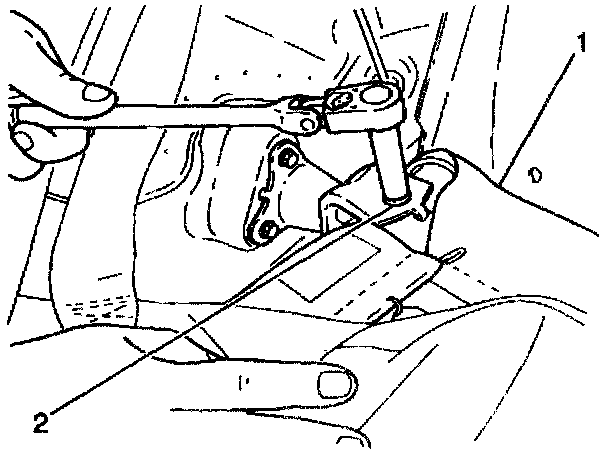

1. Install the rear seat back cushion (1) to the vehicle. Secure the rear seat back cushion with the center pivot support bolt (2).
Tighten
Tighten the center pivot support bolt to 18 N.m (13 lb ft).
Seat Back Replacement: Rear Split Folding - Installation Procedure:

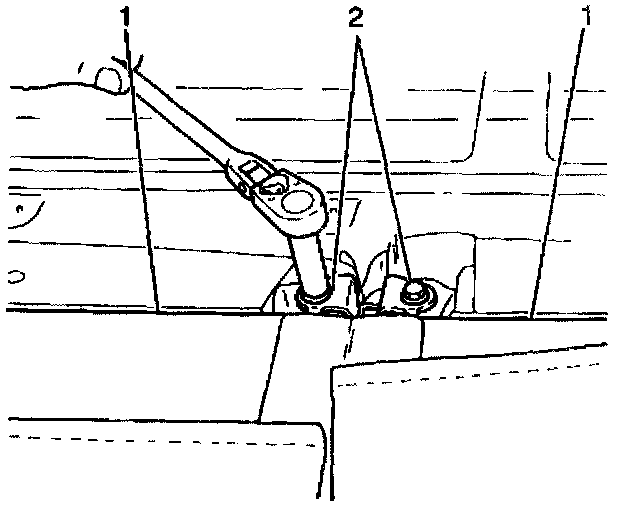

2. Install the outer pivot support bolt (2) to the rear seat back cushion (1).
Tighten
Tighten the outer pivot support bolt to 18 N.m(13 lb ft).
3. Install the two plastic carpet retainers that secure the back of the seat back cushion cover to the rear compartment area.
4. Return the seat back to the upright position.
