Seat Replacement - Child

REMOVAL PROCEDURE

Seat Replacement: Child - Removal Procedure:

1. Remove the child seat cushion.
2. Remove the two upper bolts (1) that secure the child seat (2) to the rear seat back cushion (3).

Seat Replacement: Child - Removal Procedure:

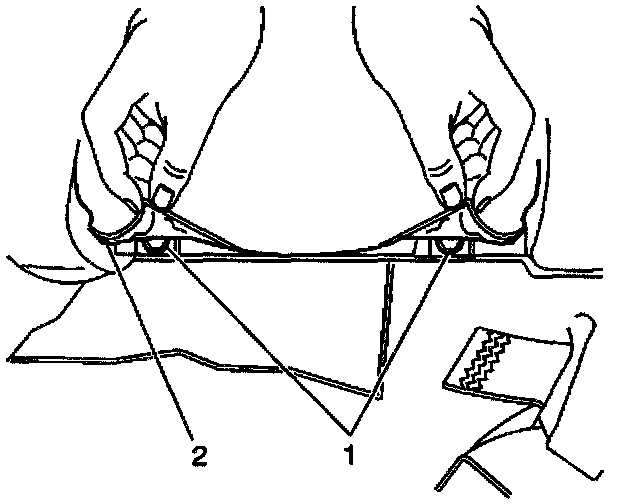

3. Remove the two lower bolts (1) that secure the child seat (2) to the rear seat back cushion.
4. Remove the child seat (2) from the vehicle.

INSTALLATION PROCEDURE

Seat Replacement: Child - Installation Procedure:

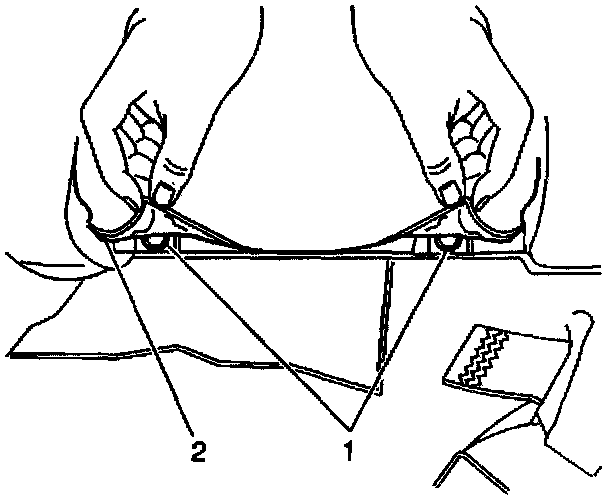

1. Install the child seat to the rear seat back cushion. Secure the child seat (2) with the two lower bolts (1).

Seat Replacement: Child - Installation Procedure:

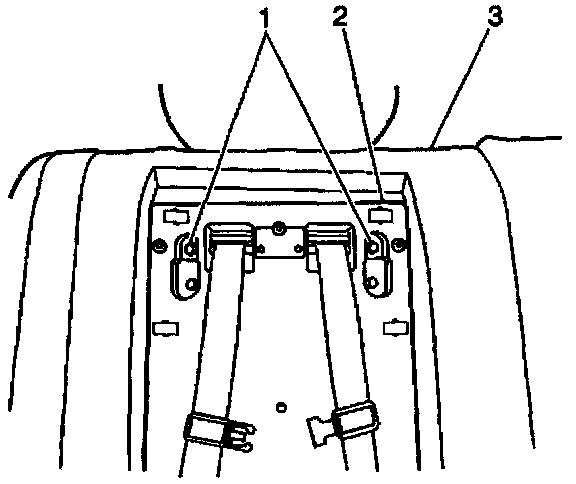

2. Install the two upper bolts (1) that secure the child seat (2) to the seat back cushion (3).

Tighten
Tighten all four child seat bolts to 18 N.m (13 lb ft).

3. Install the child seat cushion.
